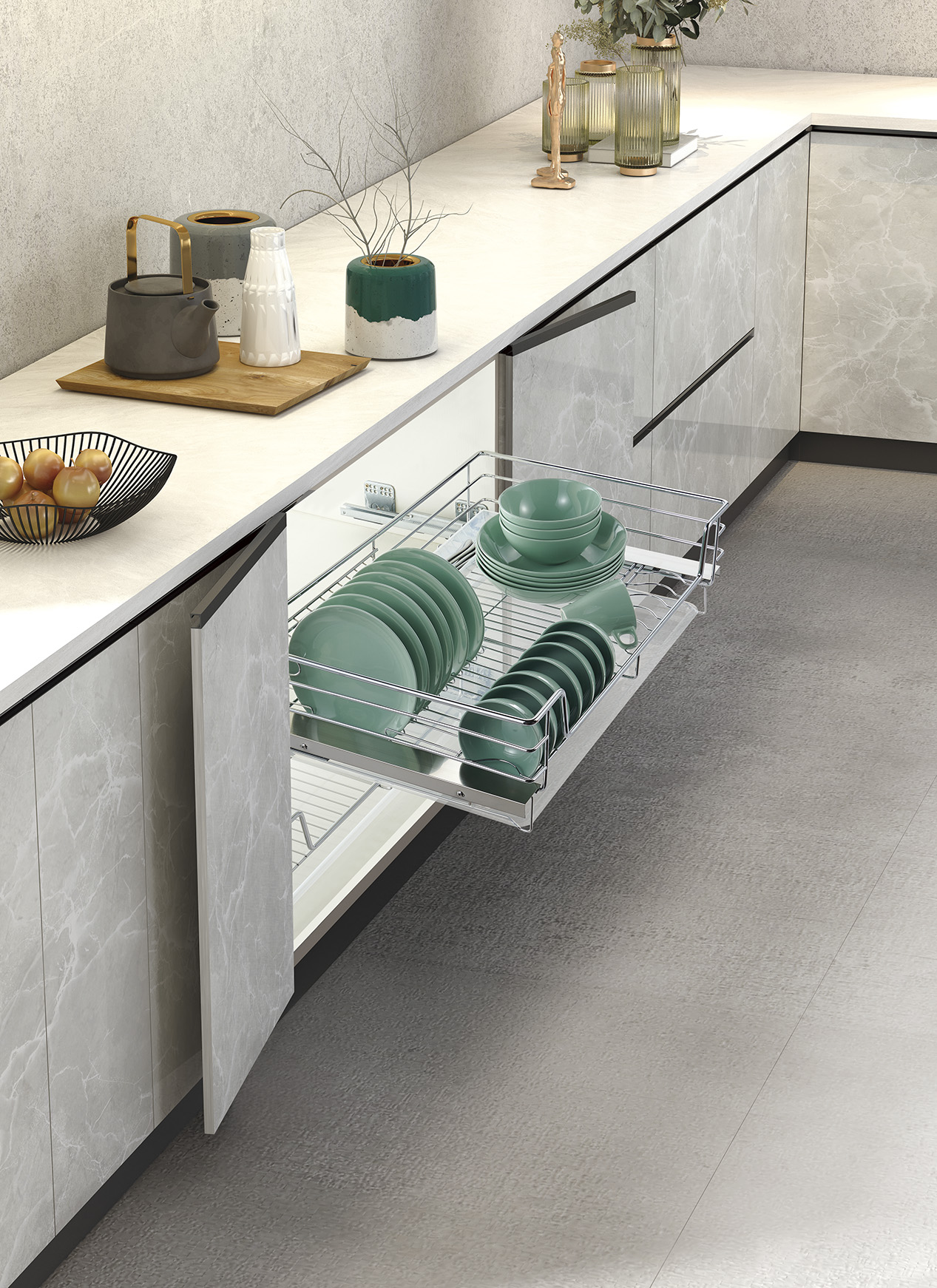

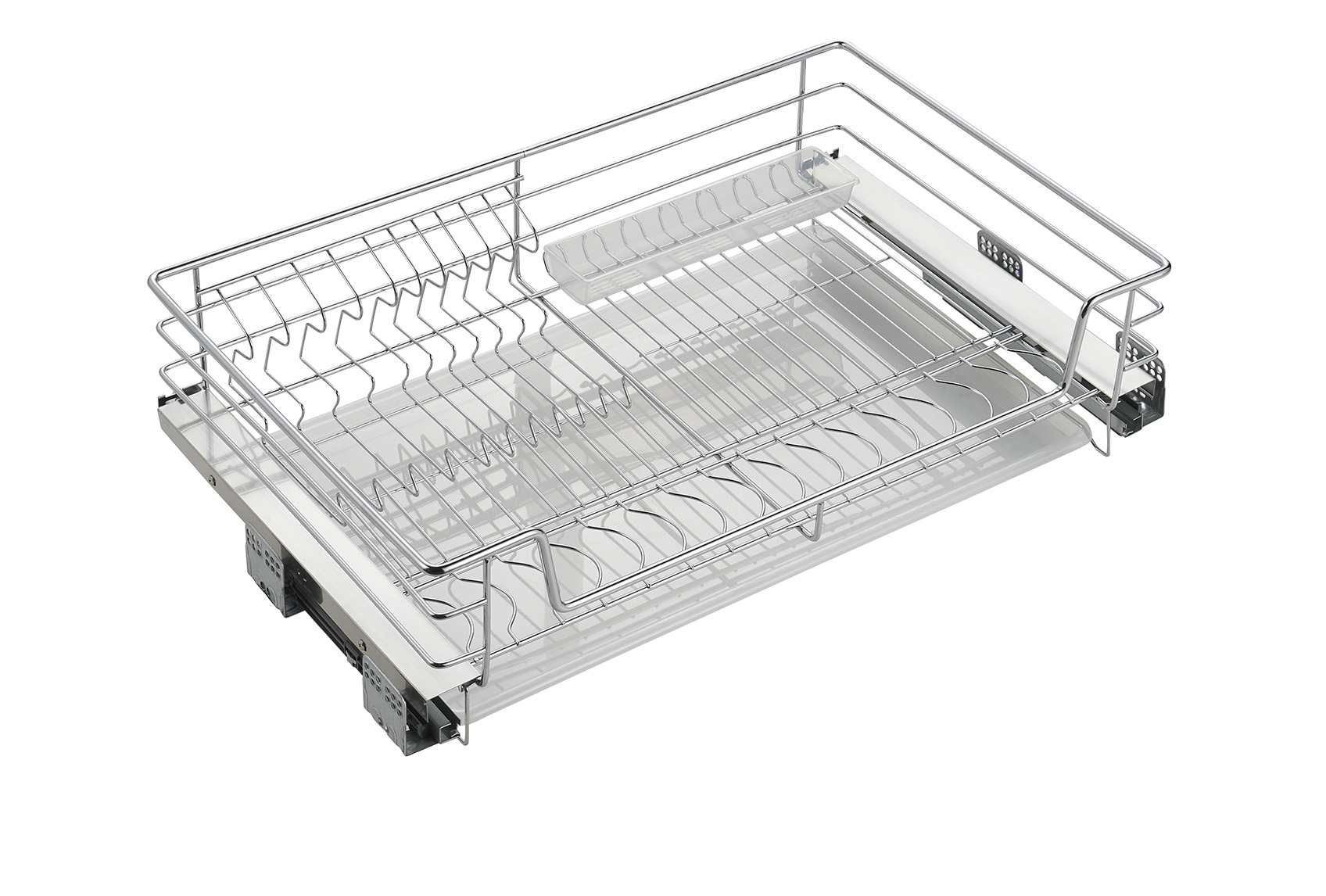

This full-extension stainless steel kitchen pull-out dish basket is built with an integrated reinforced wire frame, creating layered storage for pots, plates, bowls, and other tableware. The smooth soft-closing slides allow the basket to pull out fully, making everything inside the base cabinet clearly visible and easy to access.
Made of mirror-finished rust-resistant stainless steel, it is well suited for humid kitchen environments and matches a wide range of modern custom cabinets. It helps maximize deep base cabinet storage while solving common problems such as messy tableware stacking and hard-to-reach items at the back of the cabinet.
| Cabinet Width: | |
|---|---|
| Product Size: | |
| Availability: | |
| Quantity: | |
B746A01
Welldo
B746A01
Deep base cabinets often hide heavy cookware, stacked plates, bowls, and other kitchen items that are difficult to reach. This full-extension kitchen pull-out basket is designed to bring the entire storage space out in front of you, making every item clearly visible and easy to access.

Built with a reinforced stainless steel wire frame, the basket provides stable layered storage for pots, dishes, bowls, and cookware. The full-extension slide system allows smooth pull-out movement, while the soft-closing function helps reduce noise and improve the daily user experience.
Made from rust-resistant stainless steel with a bright mirror finish, this pull-out basket is suitable for humid kitchen environments and modern custom base cabinets. It helps maximize deep cabinet space, keep tableware organized, and solve the common problem of messy stacking and hard-to-reach items.
The basket is built with an integrated cold-drawn steel wire frame, designed to provide strong support for daily kitchen storage. The bottom structure is reinforced with horizontal support bars, helping improve load-bearing performance and long-term stability.
Main Frame: Integrated cold-drawn steel wire structure
Reinforcement: Bottom horizontal support bars for better strength
Welding: Automatic robotic welding with neat and stable welding points
Surface Treatment: Double electroplating finish for better rust resistance
The design focus is not only how much weight the basket can hold, but also how smoothly and stably it performs after long-term heavy-duty use.
This kitchen pull-out basket is equipped with a three-section ball bearing slide, allowing the basket to be pulled out fully from the base cabinet. Items stored deep inside the cabinet become clearly visible and easy to access.
| Slide Parameter | Specification |
|---|---|
| Type | Three-section ball bearing slide |
| Extension Length | 100% full extension, 470mm travel distance |
| Load Rating | 45kg dynamic load |
| Closing Option | Optional soft-closing or standard closing |
| Installation | Side-mounted screw fixing with pre-positioned holes |
The slide and basket body are designed with a quick-release connection. For cleaning, the basket can be separated from the slides by simply lifting it upward, without the need for tools.
Compared with traditional closed drawers, the open wire basket design allows better air circulation and faster water drainage. This helps reduce moisture buildup, unpleasant odor and mold risk inside the cabinet.
Grid Size: 12mm × 12mm
Function: Air circulation, quick drainage and clear visibility
Benefit: Easy to locate dishes, bowls and cookware at a glance
The internal layout is designed for practical kitchen organization. Different storage zones help separate plates, lids, bowls, pots and kitchen tools, making the cabinet cleaner and easier to use.
Zone A: Shallow Storage Area
Suitable for upright plate and lid storage. The 80mm height is practical for dishes, plates and pot lids.
Zone B: Deep Storage Area
Suitable for flat storage of soup pots, frying pans and cookware. The 205mm height allows larger kitchen items to be stored more easily.
Zone C: Optional Tool Slot
Optional knife holder or chopstick holder modules can be added according to different storage needs.
Removable anti-slip silicone pads help keep items stable during pull-out movement and can be taken out for easy cleaning.
This stainless steel kitchen pull-out basket is available in multiple sizes to match common base cabinet widths, including 600mm, 700mm, 750mm, 800mm and 900mm cabinets.
| Model | Basket Width | Suitable Cabinet Width | Typical Application |
|---|---|---|---|
| B746A01 | 564mm | 600mm | Small kitchens and apartment projects |
| B747A01 | 664mm | 700mm | Standard residential kitchens |
| B7475A01 | 714mm | 750mm | Renovation projects and furnished apartments |
| B748A01 | 764mm | 800mm | Large kitchens and villa kitchens |
| B749A01 | 864mm | 900mm | High-end custom cabinets and commercial kitchens |
Unified Depth: 470mm, suitable for standard base cabinets with 500–550mm inner depth.
Unified Height: 205mm, single-layer design for flat cookware storage without blocking the cabinet door.
The product is designed for efficient installation in standard base cabinets. With proper measurement and slide positioning, the basket can be installed quickly and adjusted for smooth operation.
Step 1: Cabinet Measurement
Check the inner cabinet width, depth and door hinge position to make sure there is enough pull-out clearance.
Step 2: Slide Positioning
Mark the installation height on the side panels, pre-drill the fixing holes and secure the slides with screws.
Step 3: Basket Mounting
Align the hooks on both sides of the basket with the slide slots, push it in horizontally and lock it into place.
Step 4: Load Testing and Adjustment
Test the basket under empty and loaded conditions to confirm smooth movement, stable structure and proper door clearance.
Customer Requirement: For projects such as 300 furnished apartments, kitchen base cabinets usually require standardized storage hardware with controllable cost, easy installation and low after-sales risk.
Solution: B746A01 and B747A01 are suitable for bulk supply. We can provide unified installation guide videos, pre-shipment inspection before delivery, and efficient installation support, with an estimated installation time of about 20 minutes per set.

User Pain Point: In many old kitchens, deep base cabinets are difficult to use. Cookware stored at the back of the cabinet is often forgotten, and taking items out becomes inconvenient.
Solution: By removing the old partition board and installing a heavy duty kitchen pull out basket, the deep cabinet space can be pulled out completely for easier access. This helps improve storage visibility, increase space utilization, and make old kitchen cabinets more practical.
Operation Requirement: Commercial kitchens require high-frequency use, fast access to cookware, reliable load-bearing capacity and easy cleaning.
Solution: The large-size B749A01 is suitable for restaurant preparation areas and commercial kitchen storage. With upgraded stainless steel material and a reinforced structure, it can support frequent daily use. Regular maintenance only requires checking screws and lubricating the slides when necessary.
Brand Requirement: Cabinet brands may require private brand logos, customized packaging, and matching product colors for different cabinet collections.
Solution: We support customized surface finishes, such as champagne gold, gunmetal grey and matte black. Neutral packaging, branded instruction manuals and small-batch trial orders are also available for OEM and ODM cooperation.
| Order Type | Packaging Solution | Shipping Method | Lead Time |
|---|---|---|---|
| Samples, 1–5 sets | Pearl cotton protection + five-layer carton | International express, DHL / FedEx | 5–7 days |
| Small batch, 6–50 sets | Carton + corner protection, pallet available | Air freight / sea freight LCL | 15–30 days |
| Bulk order, 50–500 sets | Pallet packaging with stretch film fixation | Sea freight full container, 20GP / 40HQ | 30–45 days |
| Project customization, 500+ sets | Wooden crate packaging with moisture-proof treatment | Sea freight full container, door-to-door service | To be confirmed |
Export Documents: Certificate of Origin, Quality Inspection Report, Material Certificate, and MSDS if required.
We are committed to providing reliable product quality, strict testing standards and practical after-sales support for every kitchen pull-out basket order.
| Item | Commitment |
|---|---|
| Material Quality Assurance | Material composition test reports can be provided. Any defective material will be compensated at a 1:10 ratio. |
| Load Testing | Each batch is sampled and tested with 25kg load for 500 opening and closing cycles. |
| Salt Spray Testing | The surface treatment passes a 48-hour neutral salt spray test. |
| Slide Quality Guarantee | 3-year functional warranty for slides. Free replacement is available for non-human damage. |
| Installation Support | Installation drawings, video guides and remote technical support can be provided. |
Choosing the right kitchen pull-out basket depends on cabinet width, storage needs, usage environment and order quantity. The guide below helps you select the most suitable model for your project or cabinet design.
| Cabinet Width | Recommended Model |
|---|---|
| 600mm | B746A01 |
| 700mm | B747A01 |
| 750mm | B7475A01 |
| 800mm | B748A01 |
| 900mm | B749A01 |
Heavy cookware, such as cast iron pots and frying pans: Standard configuration is recommended.
Mainly bowls and dishes: Adjustable dividers are recommended for better plate and bowl organization.
Mixed kitchen storage: Optional tool slots or accessory modules can be added for more flexible storage.
Residential kitchen: Standard electroplated finish is suitable for daily home use.
Coastal or humid areas: Stainless steel material upgrade is recommended for better rust resistance.
Commercial kitchen: Reinforced slides and annual maintenance support are recommended for high-frequency use.
Sample testing: 3–5 sets are recommended to confirm product compatibility and installation effect.
Project order: 50–100 sets are recommended for batch quality verification and project supply.
Strategic cooperation: 500+ sets are suitable for customized pricing and dedicated customer support.
This is not just a basket that holds kitchen items. It is a mechanical storage system designed to bring deep base cabinet space directly in front of the user.
With a heavy-duty frame, full-extension slides, open wire ventilation and multiple cabinet width options, this kitchen pull-out basket helps solve long-standing storage problems in base cabinets.
