A pull-out waste bin keeps household waste concealed inside the kitchen cabinet while making the bin easier to access and remove. However, choosing the correct model requires more than checking the cabinet’s nominal width.
Cabinet panel thickness, internal dimensions, hinges, slides and plumbing can all affect the usable installation space. This guide introduces Welldo pull-out waste bins for cabinets ranging from 350mm to 600mm and explains what buyers should check before selecting a model.
Kitchen cabinet sizes normally refer to the cabinet’s external width. The clear internal width is smaller because the two side panels occupy part of the available space.
Hinges, mounting plates, pipes and other fittings can reduce the installation space further. Therefore, a waste bin designed for a 400mm cabinet must be narrower than 400mm.
Buyers should check both the recommended cabinet size and the complete product dimensions before placing an order.
Model | Type | Product Size (D × W × H) | Recommended Cabinet |
|---|---|---|---|
J5115 | Single waste bin | 500 × 272 × 510mm | 350mm |
J635 | Stainless steel waste bin | 319 × 295 × 363mm | 350mm |
J5112 | Single waste bin | 437 × 303 × 535mm | 400mm |
J606 | Double waste bin, 20L | 498 × 412 × 415mm | 450mm |
J5113 | Double waste bin | 532 × 403 × 534mm | 460mm |
J609 | Double waste bin, 34L | Confirm before ordering | 500mm |
J610 | Double waste bin, 45L | 502 × 565 × 537mm | 600mm |
All measurements should be checked against the actual internal cabinet space. Product specifications may also be updated, so buyers should confirm the latest technical drawing before ordering.
Welldo offers two different solutions for 350mm cabinets.

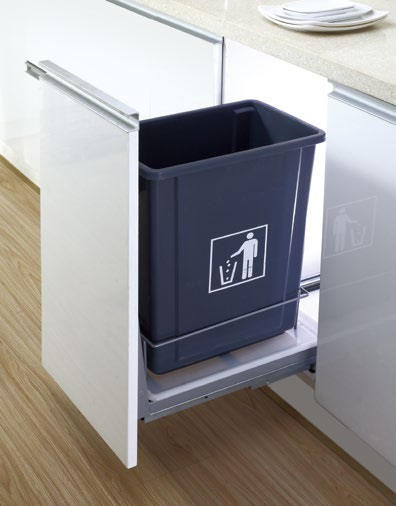

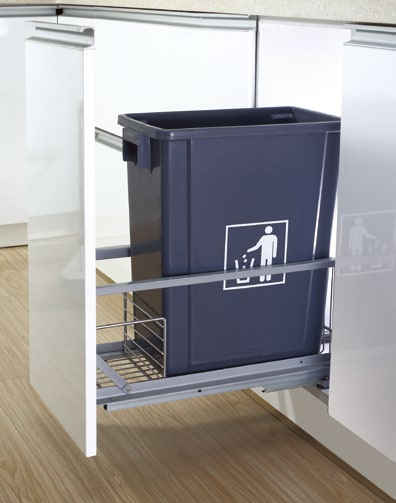

The J5115 measures 500 × 272 × 510mm and uses a rectangular container mounted on a pull-out frame.
Its narrow width makes it suitable for compact base cabinets where efficient use of space is important. The container can be removed from the frame for emptying and cleaning.

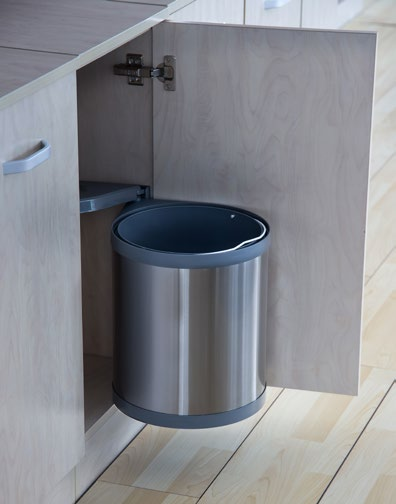

The J635 measures 319 × 295 × 363mm and features a stainless steel outer body with a lid.
Compared with a conventional rectangular plastic bin, its cylindrical design provides a different appearance and opening method. It can be considered for kitchen projects that prefer a more compact stainless steel solution.
Although both models are intended for 350mm cabinets, their structures, dimensions and operating methods are different. Buyers should select the model according to the available cabinet depth, height and preferred design.
The J5112 is designed for a 400mm cabinet and measures 437 × 303 × 535mm.
It uses a single rectangular container installed on a pull-out base frame. The 303mm product width leaves room for the cabinet panels and installation clearance within a nominal 400mm cabinet.
This model is suitable for buyers who prefer one larger waste container instead of dividing the available space between two smaller bins.
Before ordering, check that the cabinet provides sufficient depth for the 437mm frame and sufficient height for the 535mm container.

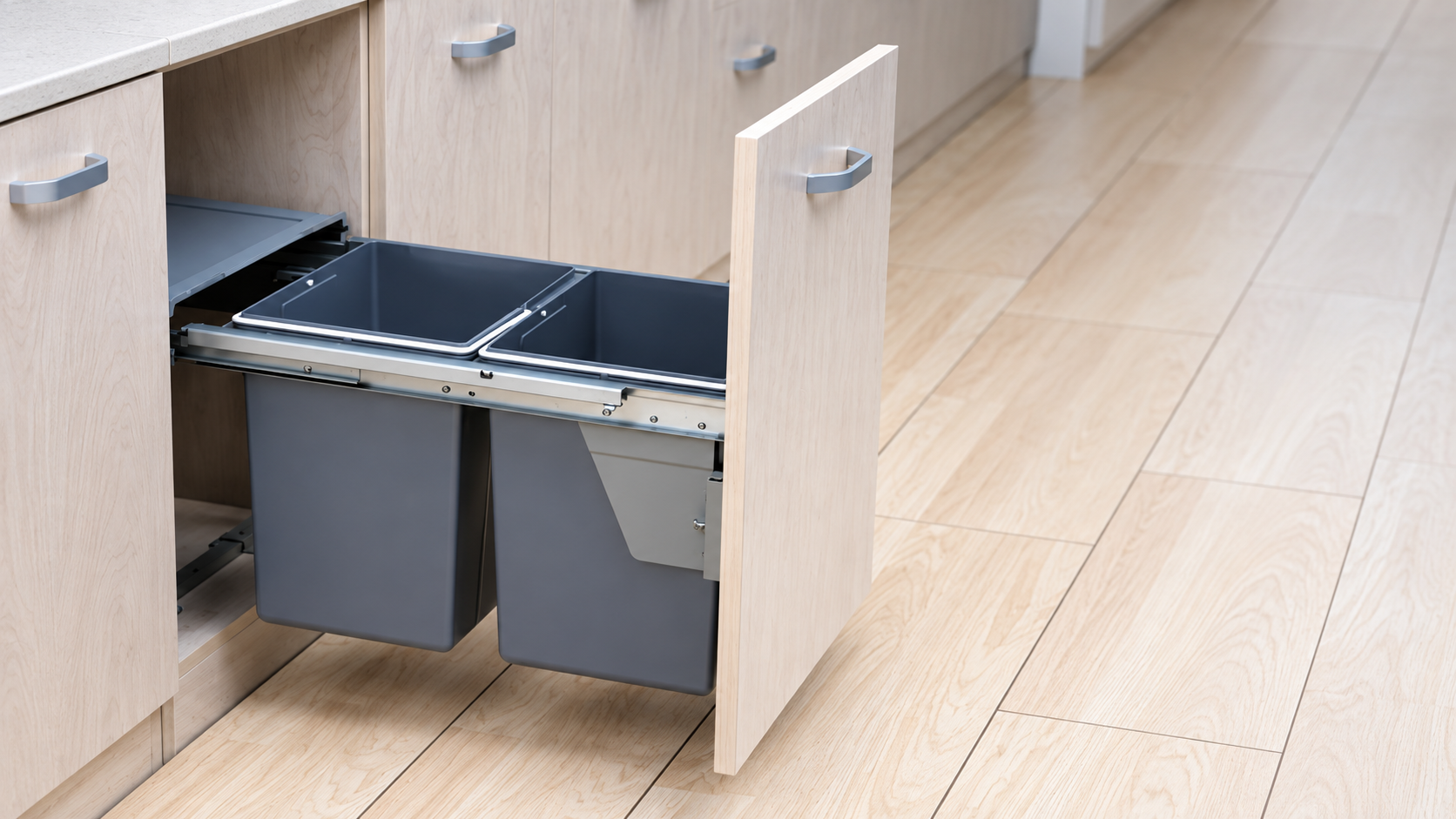

The J606 is a double waste bin system designed for a 450mm cabinet. Its overall dimensions are 498 × 412 × 415mm, and the stated capacity is 20L.
The two containers can be used to separate different types of household waste, such as recyclable and general waste.
Its lower height can also be useful in cabinets where the vertical space is restricted. However, the sink bowl, drainpipe and other internal fittings must still be considered.

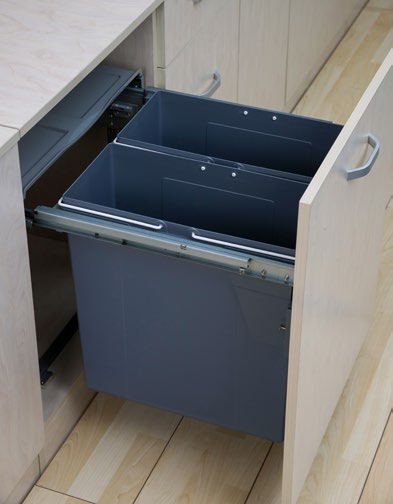

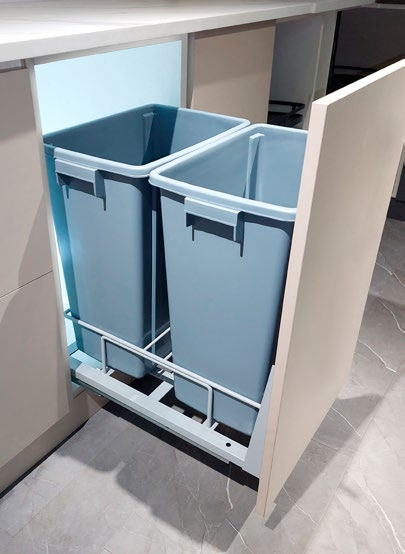

The J5113 measures 532 × 403 × 534mm and is recommended for a 460mm cabinet.
It includes two removable containers supported by a pull-out metal frame. This design helps users separate waste while keeping both containers concealed behind the cabinet door.
Because 460mm is not a standard cabinet width in every market, project buyers should confirm the actual cabinet specification before choosing this model.

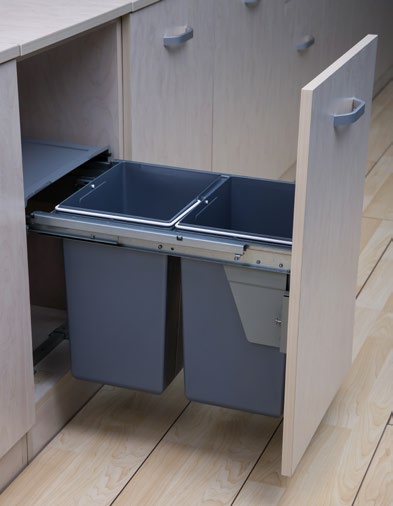

The J609 is a 34L double waste bin designed for a 500mm cabinet.
Compared with the 20L model, it provides greater total capacity and is more suitable for kitchens with higher daily waste volumes. The two-bin arrangement supports basic waste separation without requiring separate cabinets.
Buyers should request the latest dimension drawing for J609 before confirming cabinet production or bulk orders.

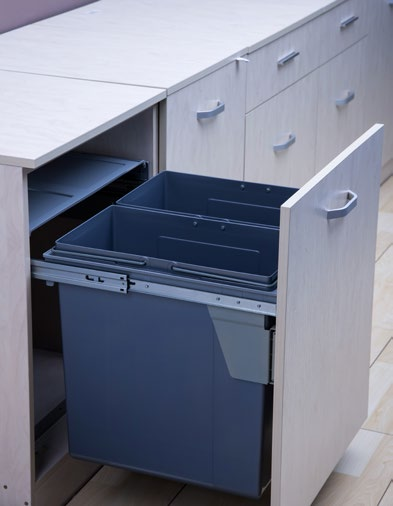

The J610 is a 45L double waste bin measuring 502 × 565 × 537mm. It is designed for a 600mm cabinet.
This is the largest double-bin option shown in the Welldo range. Its greater capacity makes it suitable for larger residential kitchens and projects where users want to separate waste without emptying the containers too frequently.
A 600mm cabinet provides more internal width, but the buyer must still confirm that the cabinet depth and height are sufficient for the complete pull-out system.
A single-bin system provides one larger container and is generally easy to empty and clean. It is suitable when all household waste is collected together or when waste separation is handled elsewhere.
A double-bin system divides the available space into two containers. It can be used for:
General household waste
Recyclable materials
Food waste
Different local waste categories
The correct option depends on the cabinet size, daily waste volume and waste-sorting practices in the target market.
Before selecting a pull-out waste bin, measure the following areas.
Measure the distance between the two cabinet side panels. Use the narrowest available point if hinges or fittings extend into the cabinet.
Measure from the front mounting position to the back panel. Check whether pipes, sockets or other components reduce the available depth.
Measure from the cabinet base to the lowest obstruction. For an under-sink installation, include the sink bowl and drainpipe in the measurement.
Confirm that the hinges, door and mounting plates will not interfere with the pull-out frame.
Make sure there is enough space in front of the cabinet for the waste bin to extend fully.
Distributors, kitchen manufacturers and project buyers should confirm the following details before ordering:
Cabinet external and internal dimensions
Cabinet panel thickness
Product installation dimensions
Single-bin or double-bin requirement
Required waste capacity
Container removal and cleaning method
Door connection and opening method
Slide type and load capacity
Product color and finish
Packaging and branding requirements
Order quantity and target market
For project-specific cabinets, a technical drawing or cabinet layout is more reliable than providing only the nominal cabinet width.
Common mistakes include:
Selecting a model according to external cabinet width only
Ignoring hinges, pipes or sink components
Confusing product dimensions with packaging dimensions
Failing to check the required installation depth
Choosing capacity without considering container quantity
Producing cabinets before confirming the latest product drawing
Confirming these details in advance can reduce installation problems, product returns and modification costs.
Welldo offers single, double and stainless steel waste bin solutions for kitchen cabinets ranging from 350mm to 600mm.
For compact cabinets, the J5115 and J635 provide two different options for 350mm units. The J5112 is designed for a 400mm cabinet, while the J606, J5113, J609 and J610 provide double-bin solutions for larger cabinets and different capacity requirements.
The final model should always be selected according to the actual internal cabinet dimensions and installation environment.
Need help selecting a suitable waste bin? Send us your cabinet dimensions, preferred capacity, target market and required quantity. Welldo will recommend a compatible model for your kitchen project.
