Views: 0 Author: Welldo Kitchen Hardware Publish Time: 2026-09-21 Origin: Original by Welldo Hardware
Upper kitchen cabinets provide valuable storage space, but shelves installed above eye level can be difficult to reach. A pull-down basket brings stored items down to a more accessible height, making better use of the space inside wall cabinets.
Welldo offers both manual and automatic elevator baskets for 600mm, 700mm, 800mm and 900mm cabinets. Although both systems serve the same basic purpose, they differ in operation, installation requirements, product dimensions and project positioning.
This guide compares the two options and explains how to select a suitable pull-down basket for a kitchen project.
A pull-down basket is installed inside an upper kitchen cabinet. Instead of reaching deep into a high shelf, the user lowers the complete basket toward the front of the cabinet.
The system can be used to store:
Plates and bowls
Cups and glasses
Dry food
Seasonings
Lightweight cookware
Other frequently used kitchen items
Pull-down storage can improve accessibility and make upper cabinets more practical, especially in kitchens designed for different user heights.

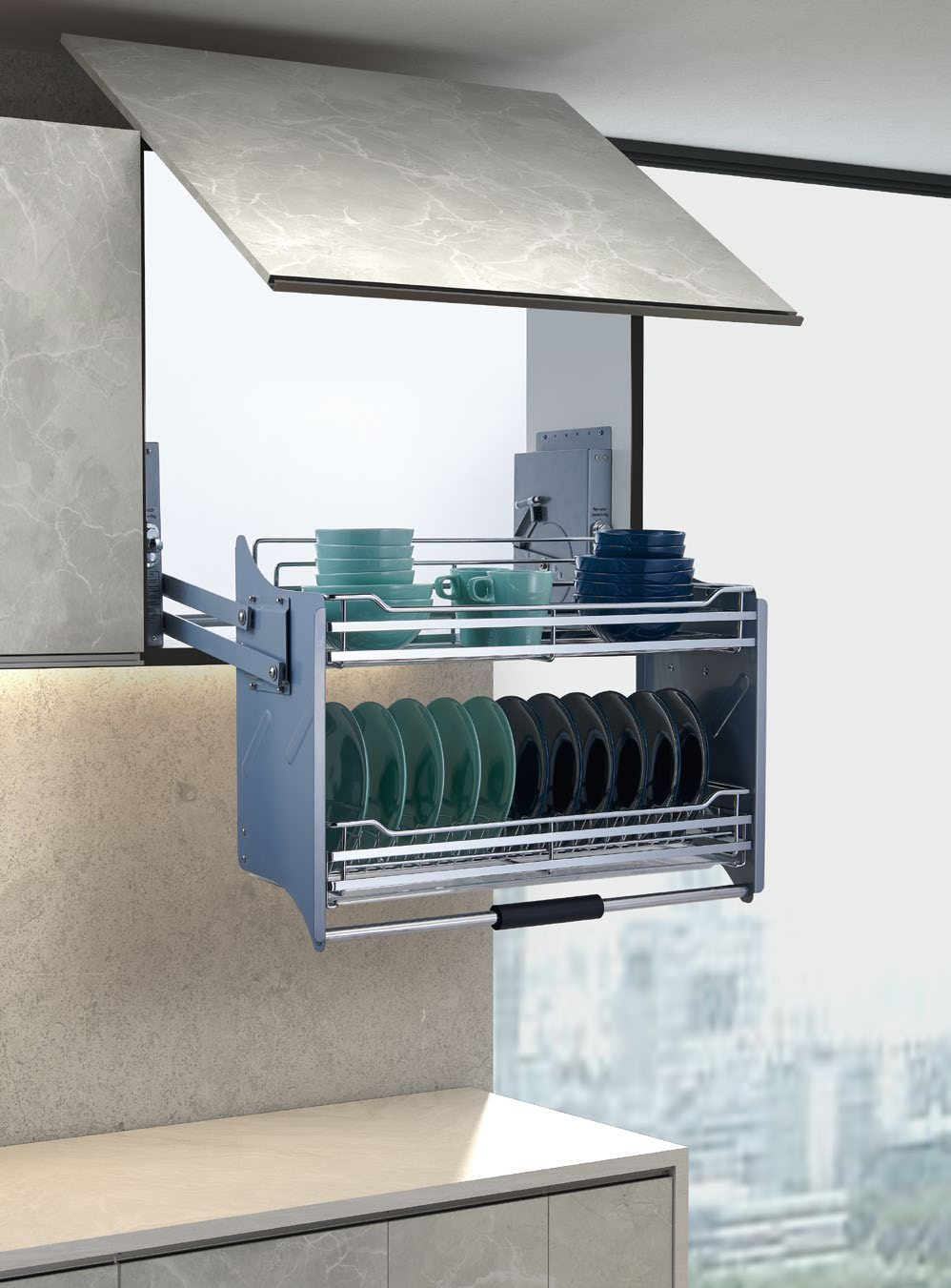

A manual elevator basket is operated using a handle. The user pulls the basket downward and guides it back into the upper cabinet after use.
Welldo’s manual models use a two-tier structure and are available for four common cabinet widths.
Model | Product Size (D × W × H) | Cabinet Width |
|---|---|---|
A221B | 280 × 564 × 550mm | 600mm |
A222B | 280 × 664 × 550mm | 700mm |
A223B | 280 × 764 × 550mm | 800mm |
A224B | 280 × 864 × 550mm | 900mm |
The mechanism should be configured according to the expected basket load. Buyers should confirm the intended storage weight so that the appropriate weight setting or supporting component can be selected.
No electrical power is required
Straightforward mechanical operation
Suitable for standard residential kitchens
Available for several common cabinet widths
Lower system complexity
Easier to include in projects where electrical preparation is unavailable
The user must pull and return the basket manually. The operating force and movement should therefore be tested with the expected load.
The cabinet structure must also provide sufficient strength and installation space for the side-mounted lifting mechanism.

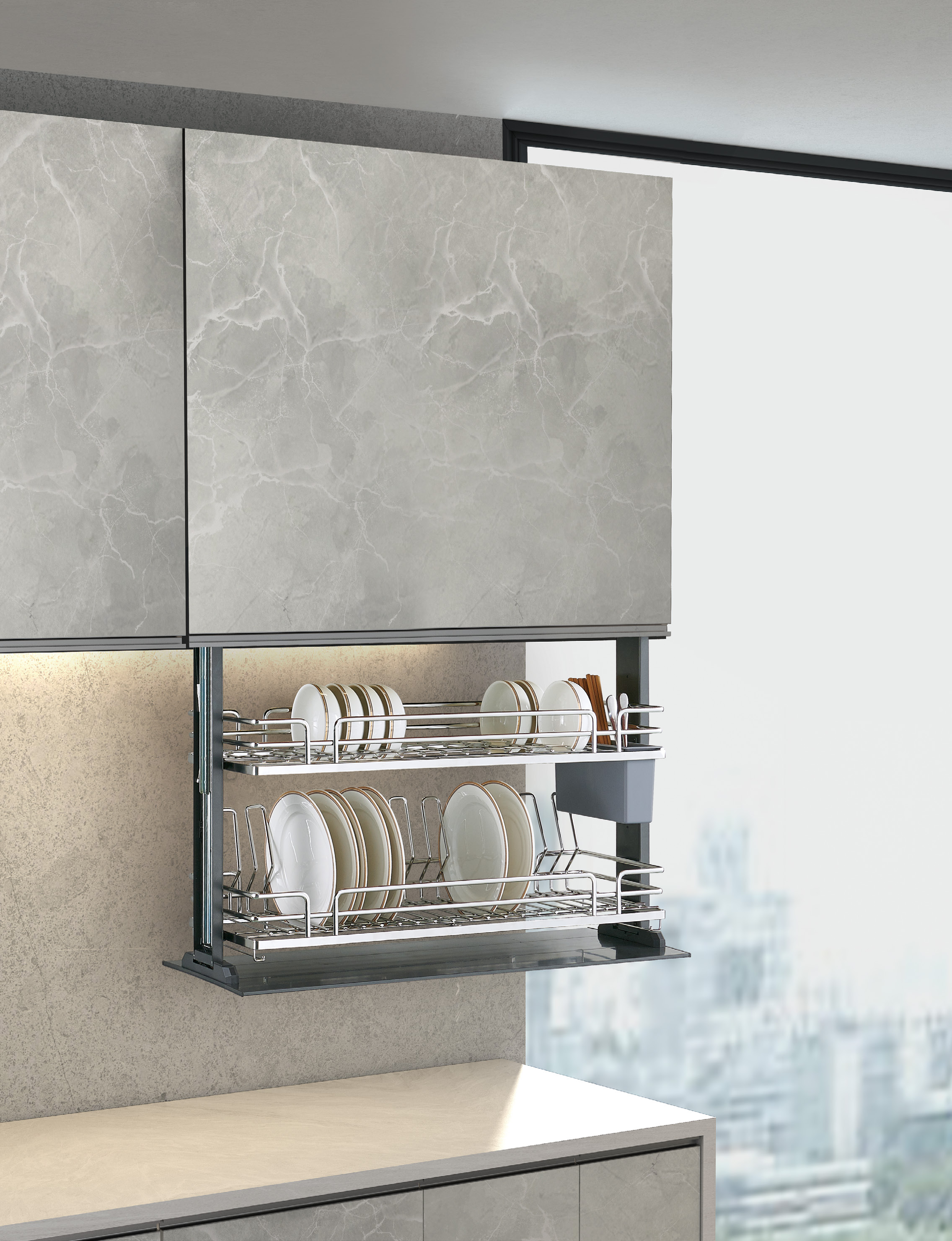

An automatic elevator basket uses an electrically powered lifting system. According to the Welldo design, the lifting movement can be activated by touch, so manual pushing and pulling are not required.
Welldo’s automatic models are also available for 600mm, 700mm, 800mm and 900mm cabinets.
Model | Product Size (D × W × H) | Cabinet Width |
|---|---|---|
A221NKD1 | 300 × 564 × 680mm | 600mm |
A222NKD1 | 300 × 664 × 680mm | 700mm |
A223NKD1 | 300 × 764 × 680mm | 800mm |
A224NKD1 | 300 × 864 × 680mm | 900mm |
The operating voltage can be configured for different countries and markets. Buyers should confirm the destination country and required voltage before production.
Touch-activated lifting
No manual pulling or pushing required
Convenient access to upper cabinet storage
Suitable for premium and modern kitchen projects
Consistent powered movement
Available for multiple standard cabinet widths
An automatic model requires a suitable power supply and electrical planning inside or near the cabinet.
Buyers should confirm the voltage, plug or wiring requirements and installation arrangement before cabinet production. Future maintenance access should also be considered when planning the kitchen.
Comparison | Manual Basket | Automatic Basket |
|---|---|---|
Operation | Pulled and returned by hand | Touch-activated powered movement |
Electricity | Not required | Required |
Product depth | 280mm | 300mm |
Product height | 550mm | 680mm |
Cabinet options | 600–900mm | 600–900mm |
Installation planning | Mechanical installation | Mechanical and electrical installation |
Project positioning | Standard and practical kitchens | Premium and modern kitchens |
User effort | Manual operation required | Minimal manual effort |
Neither option is automatically better for every project. The appropriate choice depends on the customer group, cabinet design, budget and expected user experience.
In addition to selecting the lifting mechanism, buyers can choose different basket materials and decorative combinations.
Available options can include:
Iron baskets provide a practical and economical structure. Different surface finishes can be considered according to the design and target market.
201 stainless steel offers a metallic appearance and can be used for projects requiring a balance between appearance and cost.
304 stainless steel provides better corrosion resistance and is suitable for buyers who prioritize durability and material specifications.
Aluminum is lightweight and offers a clean, modern appearance. It is suitable for contemporary kitchen designs and projects that prefer lighter basket components.
Glass elements can be combined with the basket structure to create a more decorative and premium appearance. The exact glass configuration should be confirmed according to the selected product design.
Material selection may affect appearance, weight, price and the configuration of the lifting mechanism. The expected basket load should be confirmed before finalizing the combination.
The listed cabinet width refers to the nominal external cabinet size. Before ordering, buyers should also check the actual internal cabinet dimensions.
Important measurements include:
Clear internal cabinet width
Usable cabinet depth
Usable cabinet height
Cabinet panel thickness
Door hinge position
Available opening space
Electrical position for automatic models
The manual models have a product depth of 280mm and a height of 550mm. The automatic models require a depth of 300mm and a height of 680mm.
The automatic system therefore needs more vertical installation space than the manual version.
A manual pull-down basket may be more suitable when:
The project requires a practical storage solution
No electrical connection is available
Installation simplicity is important
The target market prefers mechanical operation
The budget is more controlled
An automatic pull-down basket may be more suitable when:
The kitchen is positioned in the premium market
Convenient touch operation is required
Electrical preparation can be included
The customer wants a modern user experience
Accessibility is an important design consideration
For distributors and kitchen manufacturers, it may be useful to offer both options at different price levels.
To receive an accurate recommendation, buyers should provide:
Required cabinet width
Internal cabinet dimensions
Manual or automatic operation
Preferred basket material
Expected storage load
Destination country
Required voltage for automatic models
Target quantity
Packaging and branding requirements
Cabinet drawings when available
Confirming these details before production can reduce installation problems and ensure that the basket, lifting mechanism and cabinet work together correctly.
Welldo manual and automatic pull-down baskets are available for 600mm, 700mm, 800mm and 900mm upper kitchen cabinets.
Manual models provide a practical solution without electrical requirements, while automatic models offer touch-activated powered lifting for premium kitchen projects. Basket structures can also be matched with iron, 201 or 304 stainless steel, aluminum and glass elements to meet different market and design requirements.
Need help selecting the right pull-down basket? Send Welldo your cabinet dimensions, preferred material, expected load, destination market and order quantity. Our team will recommend a suitable configuration for your project.
