An ironing board is useful, but a conventional freestanding model often occupies valuable storage and floor space. It must be carried out, opened and stored again after every use.
A side-mounted fold-down wardrobe ironing board provides a more integrated solution. When not in use, the board remains vertically stored against a wardrobe panel. When needed, it folds down to create a convenient garment-care surface.
This design is particularly suitable for walk-in wardrobes, bedrooms, apartments, hotel rooms and custom furniture projects. However, correct cabinet planning is essential for safe and convenient use.
This type of ironing board is fixed to a vertical wardrobe panel through a mounting housing and supporting structure.

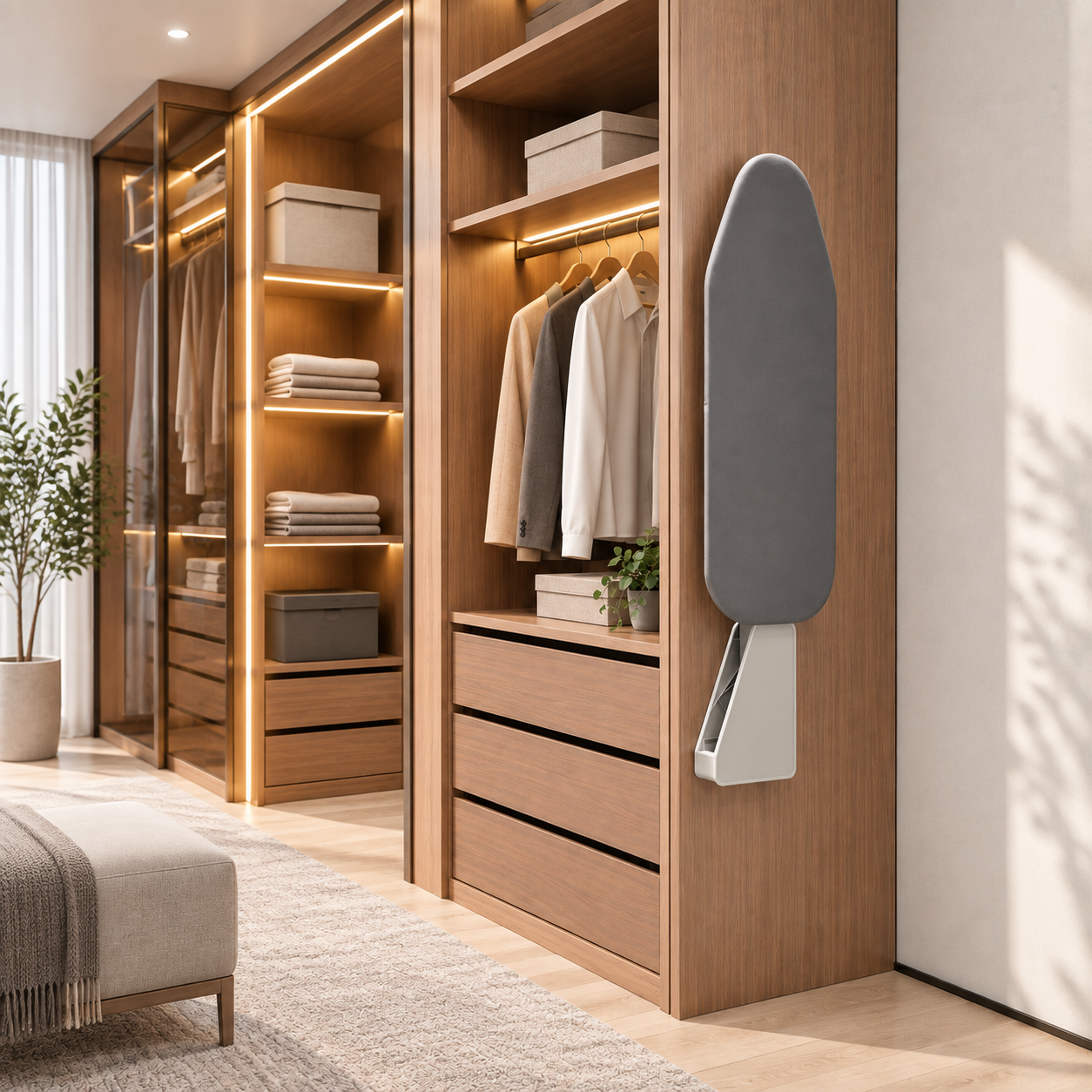

In the stored position, the padded board stands vertically against the cabinet side panel. It occupies little floor space and keeps the surrounding area tidy.

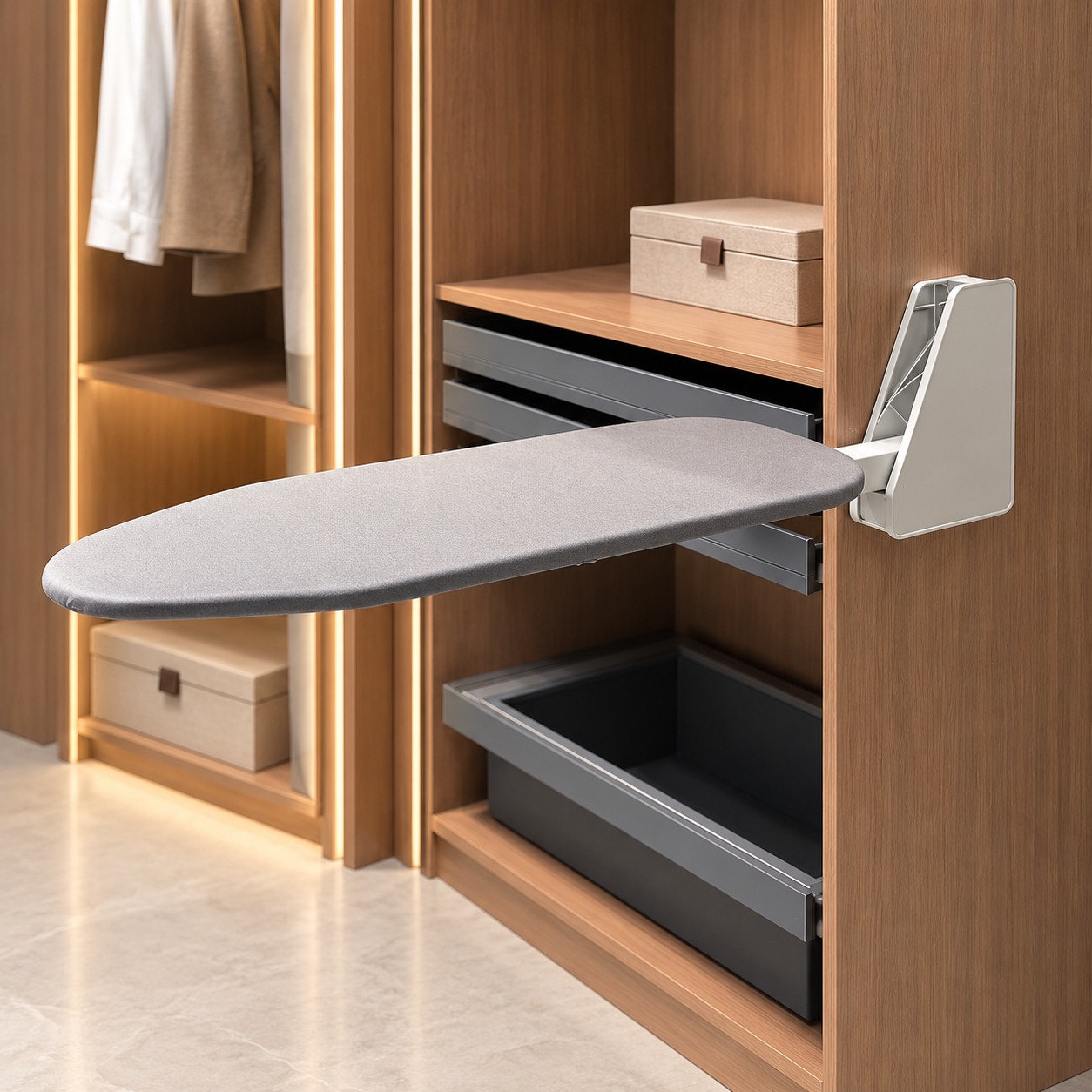

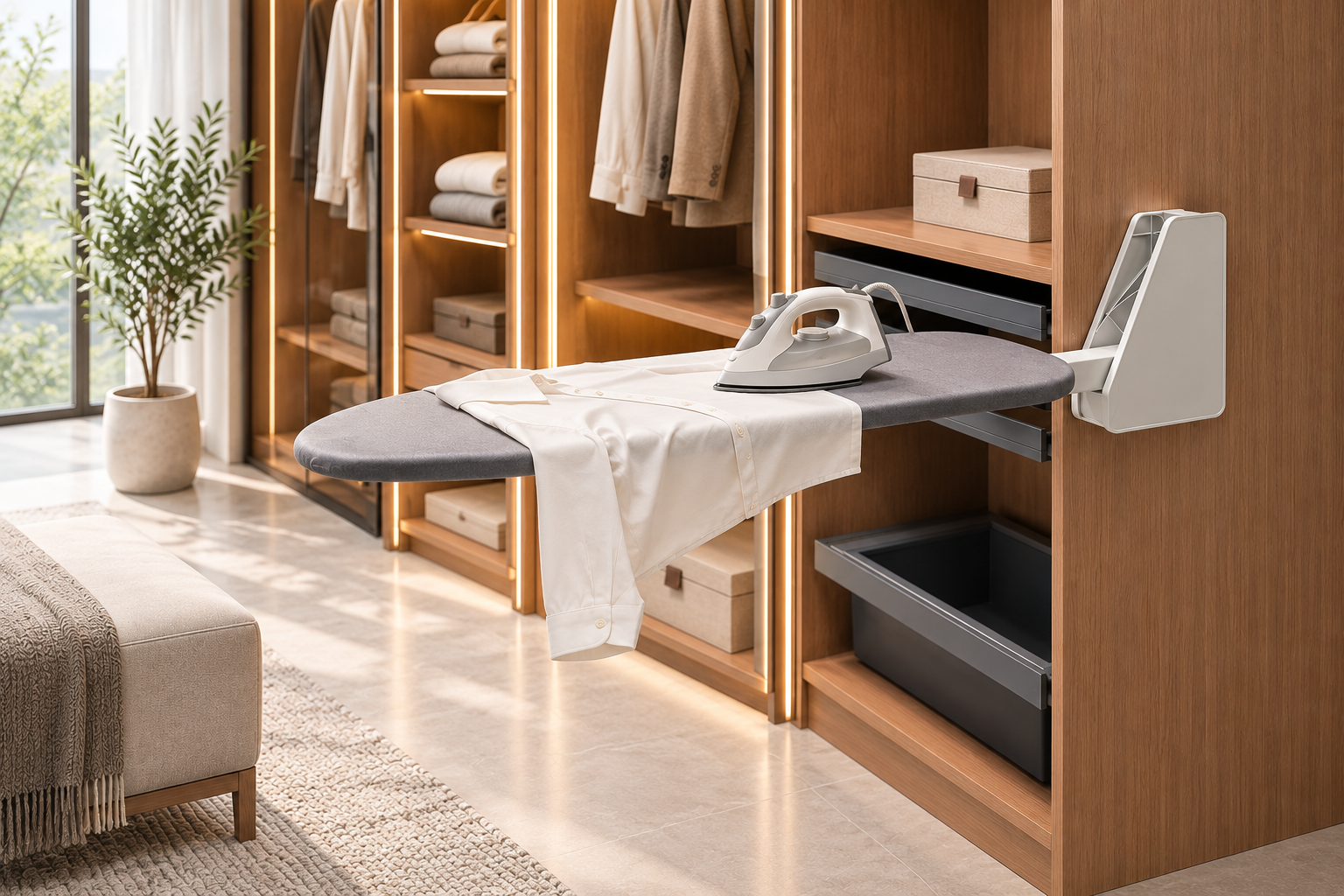

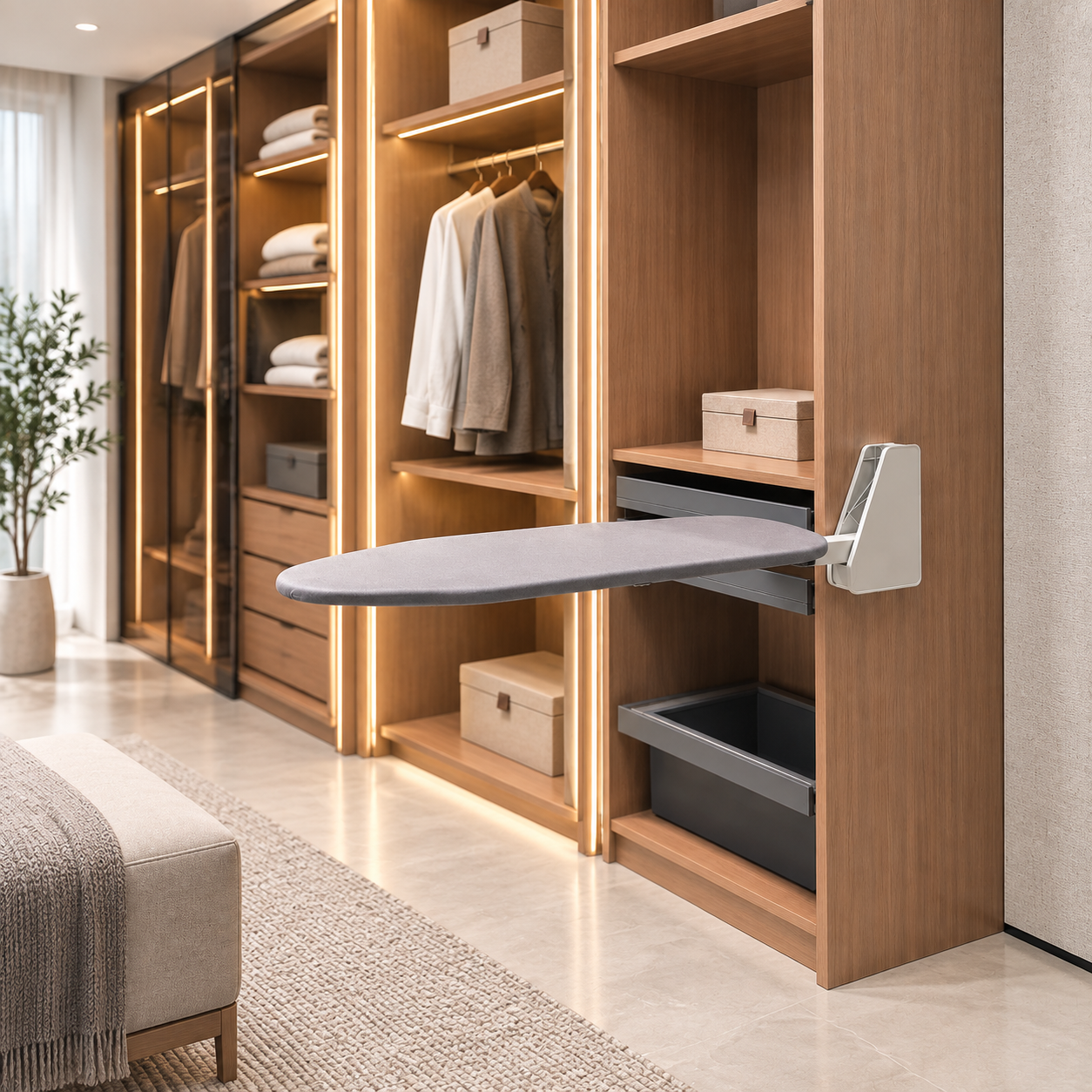

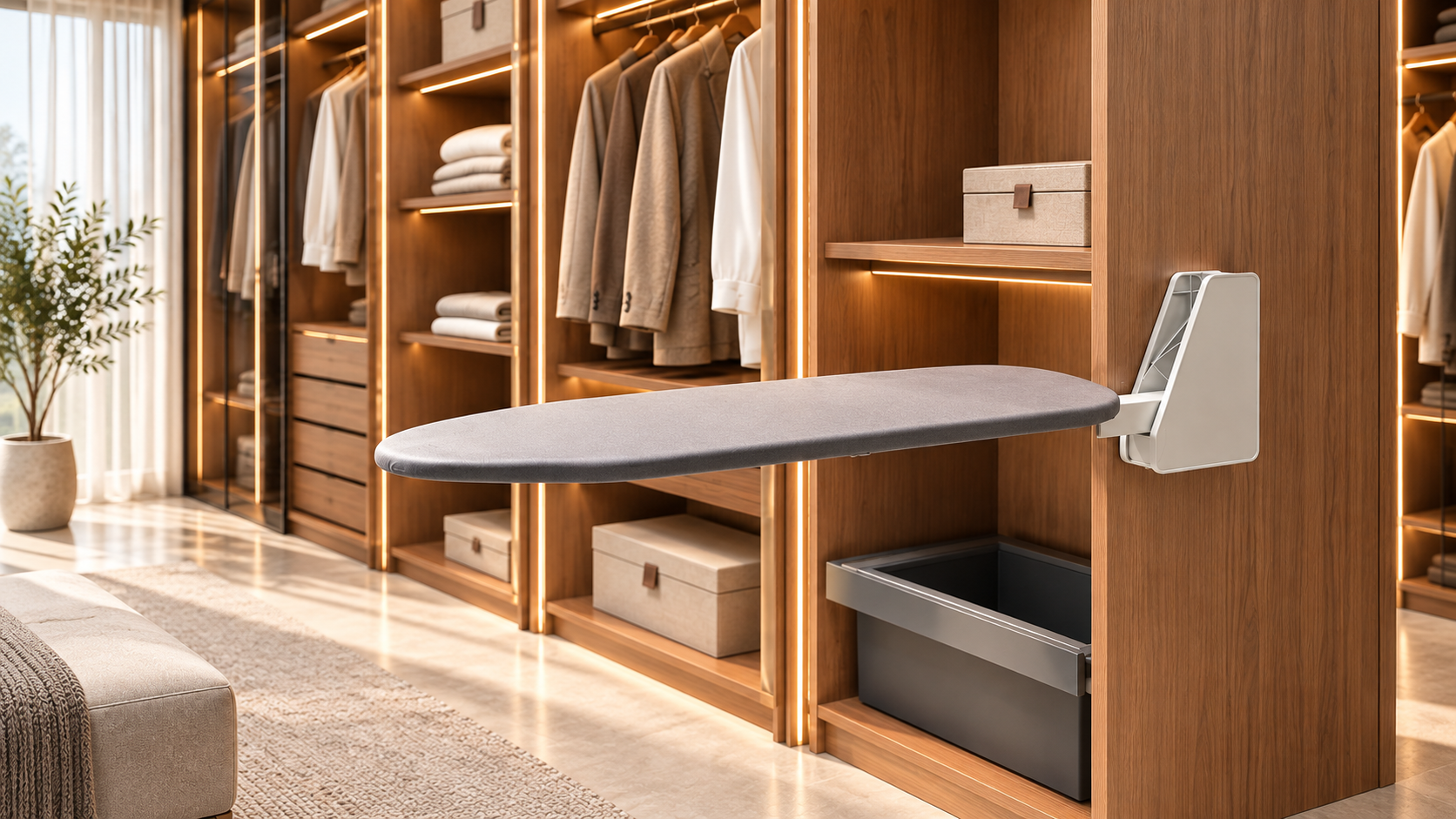

To use the product, the board is lowered from the vertical position until it reaches the horizontal working position. The support mechanism helps hold the ironing surface during normal use.
The exact opening, locking and adjustment functions may vary by model. Buyers should therefore confirm the operating video and technical drawing before ordering.
The first step is to decide where the ironing board will be installed.
Suitable positions may include:
The external side panel of a wardrobe
An internal vertical wardrobe partition
A dedicated garment-care cabinet
An open section of a walk-in wardrobe
A laundry or utility cabinet
The selected position should allow the board to move freely from vertical storage to horizontal use.
Avoid positions where the product could interfere with wardrobe doors, drawers, clothes rails, shelves or other accessories.
Unlike a floor-standing ironing board, a side-mounted model transfers its load to the cabinet panel.
The panel must support:
The weight of the ironing board
The mounting housing
The supporting arm
The downward pressure created during ironing
Thin or weak panels may flex during use and could cause screws to loosen over time.
Furniture manufacturers should confirm the panel material, thickness and screw-holding strength. Reinforcement may be necessary depending on the cabinet construction and installation position.
The final mounting method should follow the product installation drawing.
The mounting height determines the final height of the ironing surface.
If the board is installed too low, the user may need to bend forward. If it is too high, applying normal ironing pressure can become uncomfortable.
Before drilling the mounting holes, designers should consider:
The height of the main users
The thickness of the ironing board
The position of the mounting housing
The distance from the floor
Any skirting board or cabinet base
Nearby drawers and shelves
For hotel or apartment projects, a practical general-purpose working height should be selected for different users.
Although the board occupies little space when stored vertically, it requires sufficient open space when unfolded.
The area in front of the wardrobe should be checked for possible interference with:
Beds and bedside tables
Dressing benches
Wardrobe islands
Walls and room corners
Open cabinet doors
Pull-out drawers
Normal walking paths
Furniture drawings should show both the stored position and the fully open position. This makes it easier to identify clearance problems before cabinet production.
The side panel must also provide enough unobstructed vertical space for the folded board.
Do not place the product where its stored position could block:
A clothes rail
A shelf
A drawer
A light fitting
A door hinge
Another wardrobe accessory
The complete folded height should be checked against the available panel area. Product dimensions should be confirmed from the technical drawing rather than estimated from photographs.
The folding mechanism is one of the most important parts of the product.
Before placing an order, buyers should check:
Whether the board opens smoothly
Whether it remains stable horizontally
Whether the support arm locks correctly
Whether the mounting housing moves during use
Whether the board is easy to return to the vertical position
Whether fingers can be kept away from folding joints
Whether the board remains secure when stored
An operation video is useful, but project buyers should also test a physical sample when possible.
The padded surface should provide enough firmness for daily ironing while remaining comfortable to use.
Important points include:
Surface flatness
Padding condition
Fabric-cover fit
Heat resistance
Ease of cleaning
Availability of replacement covers
The cover should remain properly fitted when the board moves between vertical and horizontal positions.
Buyers should confirm the cover material and maintenance requirements with the supplier instead of assuming that all ironing-board covers provide the same performance.
A fold-down ironing board should be planned as part of the complete wardrobe system.
For example, it can be positioned near:
Hanging shirts and jackets
Trouser storage
Laundry baskets
Folded clothes
Dressing accessories
This creates a convenient garment-care area inside the wardrobe.
However, the ironing board should not reduce access to frequently used drawers or hanging sections. The best position balances convenience, storage capacity and user movement.
Before ordering, professional buyers should request:
Overall product dimensions
Folded dimensions
Open dimensions
Recommended installation height
Mounting-hole drawing
Panel requirements
Operating video
Installation instructions
Packing dimensions
Replacement-cover information
If the product is supplied disassembled, the packing list should clearly identify the board, mounting housing, supporting components and fixing hardware.
The side panel may look suitable but still lack sufficient screw-holding strength.
The stored product is compact, but the unfolded board requires considerable front clearance.
Mounting-hole positions directly affect the working height and should be confirmed before installation.
Drawers, clothes rails and cabinet doors must remain accessible after installation.
Photographs show the appearance but do not provide complete mounting dimensions or structural requirements. Technical drawings should always be reviewed.
A side-mounted fold-down ironing board can turn a wardrobe into a practical garment-care area while preserving valuable floor space.
Its performance depends on more than appearance. The cabinet panel must be strong enough, the mounting height must be comfortable, and sufficient clearance must be reserved for the fully open board.
Before placing an order, provide the supplier with the wardrobe drawing and request the product dimensions, mounting-hole information and operating video. Coordinating the ironing board with the wardrobe during the design stage helps prevent installation problems later.
Welldo supplies wardrobe storage and space-saving hardware solutions for furniture manufacturers, distributors and project buyers. Contact us with your cabinet layout and project requirements to discuss a suitable configuration.
