C131
Welldo
C131
A narrow kitchen cabinet should not be treated as leftover space. In many kitchen layouts, cabinets below 500mm wide are difficult to use efficiently because fixed shelves make the inner area hard to see, hard to reach, and easy to waste. This is especially common in compact apartments, rental kitchens, and customized cabinet projects where every small cabinet needs to serve a clear storage purpose.

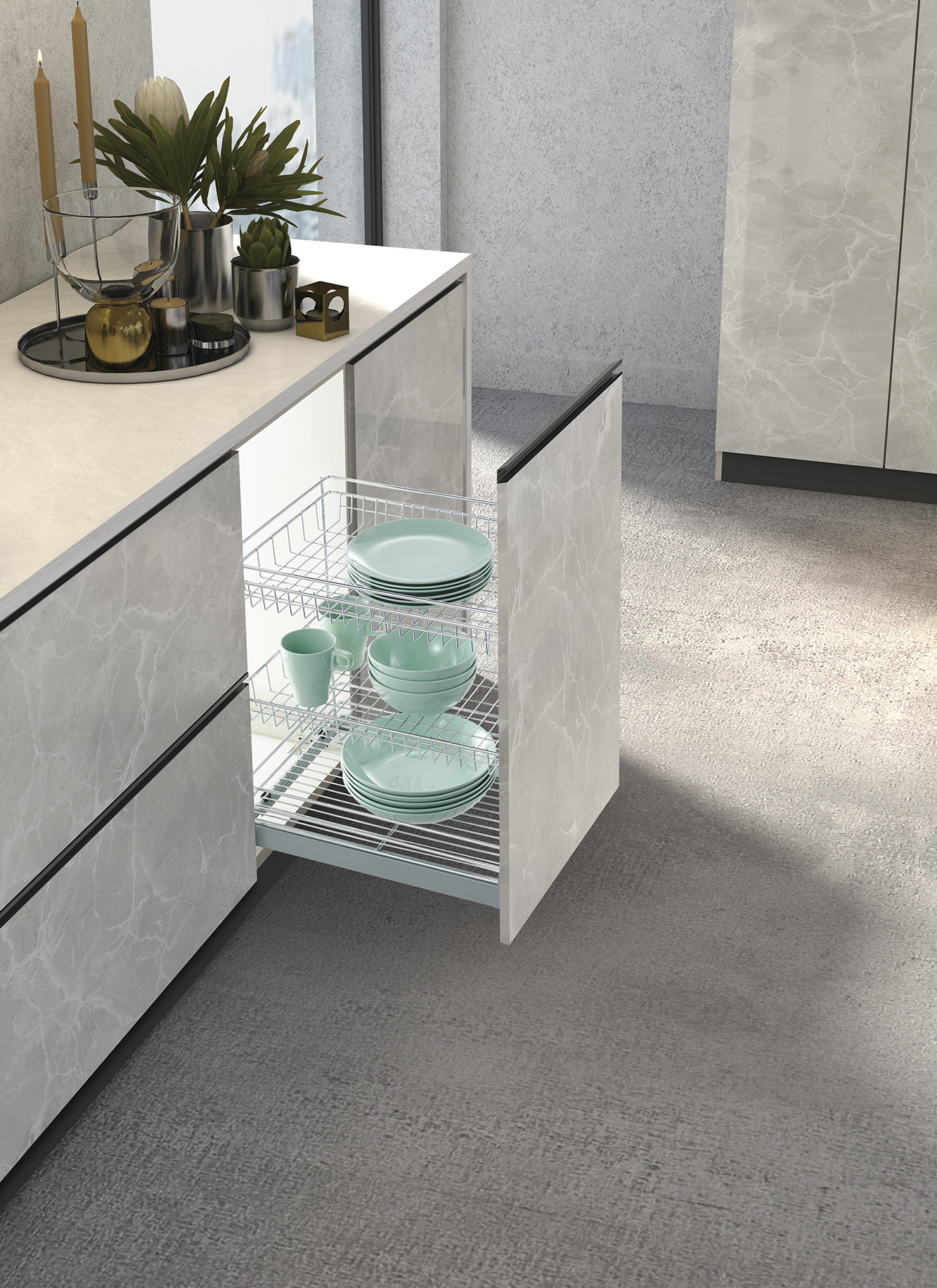

This round wire pull-out basket is developed for narrow kitchen base cabinets, helping turn slim cabinet sections into practical tableware storage areas. Instead of stacking plates, bowls, cups, bottles, and small kitchen items loosely inside the cabinet, users can pull the basket forward and view the stored items at once.
The series covers six cabinet width options, from 150mm narrow cabinets to 500mm base cabinets. The 477mm depth makes better use of the inner cabinet space, while the 505mm height fits common lower cabinet structures. This allows both vertical and horizontal space to create real storage value without changing the basic cabinet design.
The open round wire design is suitable for tableware and frequently used kitchen items. It improves visibility, supports ventilation after cleaning, and makes the storage area easier to maintain. For end users, this means less searching inside deep cabinets. For cabinet manufacturers, wholesalers, and project suppliers, it adds a practical storage function to narrow cabinets with a simple installation solution.
It is not just a small-size pull-out basket. It is a storage system redesigned for narrow cabinets, compact kitchens, cabinet showrooms, and wholesale kitchen hardware programs.
Explore more kitchen storage solutions from Welldo, including kitchen pull-out basket systems for base cabinets, narrow cabinets, and tableware organization.
Narrow base cabinets are often treated as leftover spaces in kitchen layouts. This round wire pull-out basket changes that problem by giving slim cabinets a clear storage purpose. Plates, bowls, cups, bottles, and daily kitchen items can be organized in one pull-out section instead of being stacked randomly inside the cabinet.
| Traditional Storage | Welldo Pull-Out Basket Solution |
|---|---|
| Narrow cabinets are used for random storage or left underused. | The cabinet becomes a structured tableware storage area. |
| Users need to bend down and search deep inside the cabinet. | Pull-out access brings stored items forward for clear visibility. |
| Closed cabinet spaces can easily become humid and difficult to clean. | The open round wire structure supports ventilation and easier maintenance. |

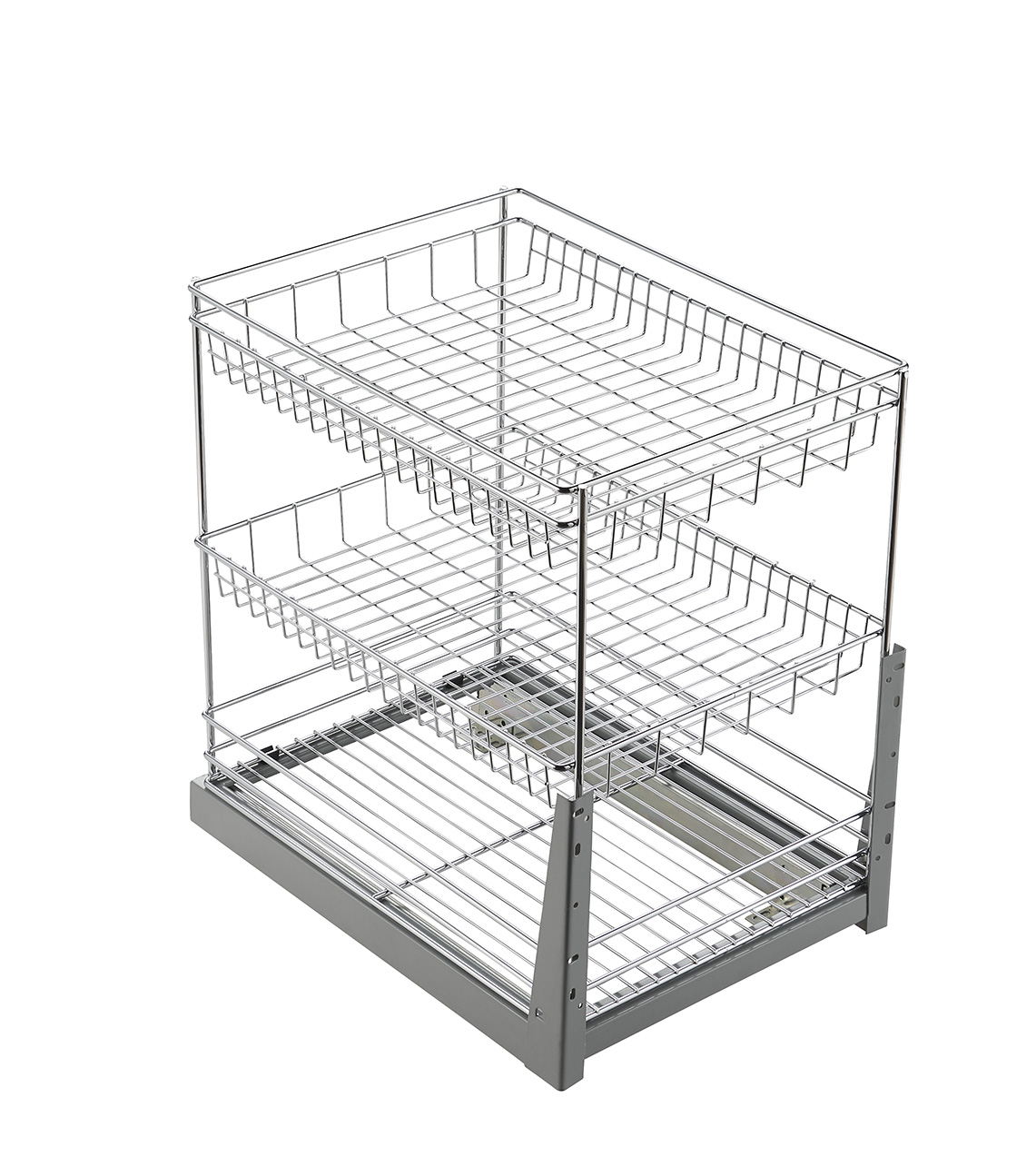

The round wire layout is not only a visual design choice. Natural gaps between each wire create an open storage structure that allows air to move through the basket, helping moisture escape instead of being trapped inside the cabinet.
This structure is especially useful for tableware storage. After plates, bowls, or cups are cleaned, the open wire basket helps reduce hidden moisture and keeps the storage area more breathable. For kitchens in humid climates or coastal markets, this detail gives the product stronger practical value in daily use.
The open basket design avoids the hidden gaps often found in traditional solid-panel pull-out baskets. For daily cleaning, users can wipe along the wire direction with a damp cloth, making maintenance simple and quick.
Without a solid bottom panel, there is less risk of water accumulation inside the basket. The optional plastic drip tray can be removed and washed separately, helping reduce the cleaning burden often associated with traditional kitchen pull-out baskets.
This is not only a narrow cabinet basket. It is a practical storage solution designed for better visibility, easier access, improved ventilation, and lower daily maintenance.
| Model | Basket Size D × W × H | Suitable Cabinet Width | Typical Application |
|---|---|---|---|
| C131 | 477 × 96 × 505 mm | 150 mm | Slim spice cabinet, pipe-covering cabinet |
| C132 | 477 × 146 × 505 mm | 200 mm | Single-door small cabinet, transition cabinet |
| C133 | 477 × 246 × 505 mm | 300 mm | Standard single-door cabinet, apartment kitchen |
| C134 | 477 × 346 × 505 mm | 400 mm | Side cabinet beside double-door cabinet, island cabinet |
| C135 | 477 × 396 × 505 mm | 450 mm | Non-standard customized cabinet, imported cabinet body |
| C136 | 477 × 446 × 505 mm | 500 mm | Large kitchen cabinet, bulk project cabinet |
Wire Material: High-quality cold-rolled steel with chrome-plated surface treatment. It passes a 32-hour neutral salt spray test, helping the basket resist rust in hot and humid kitchen environments.
Slides: Soft-close damping slides with a load capacity of ≥25 kg. The pull-out system has passed 50,000-cycle fatigue testing for daily kitchen use.
Connecting Parts: Hidden fixing structure with no exposed screws, helping prevent scratches on tableware and cabinet panels.
Drip Tray: Optional food-grade PP plastic drip tray. It is removable for easy washing and supports a temperature range from -20°C to 120°C.
Side-mounted or bottom-mounted installation options are available to match different cabinet structures.
Pre-drilled adjustment holes allow ±3 mm on-site fine tuning during installation.
No customized cabinet body is required. Standard cabinet structures can be used directly.
Typical Pain Point: In 40–60㎡ apartment kitchens, total cabinet length is often less than 3 meters, and 150–200mm narrow cabinets account for up to 30% of the space.
Solution: Models C131/C132 turn “underutilized” cabinets beside stoves or sinks into high-frequency quick-access zones for tableware. While cooking, a simple pull delivers plates and bowls instantly; cups stored in cabinets beside the sink remain ventilated and dry.
Typical Pain Point: Kitchens delivered by developers in bulk often lack functional cabinet accessories, resulting in complaints from homeowners about insufficient storage.
Solution: Models C133–C136 cover mainstream cabinet widths. For bulk procurement, a single supplier can provide full-size coverage, reducing purchasing management costs. Installation guides are illustrated, allowing on-site workers to install without special training.
Typical Pain Point: Cabinet frames are intact, but internal hardware is outdated, and complete replacement is too costly.
Solution: This basket series fits the hole positions of mainstream cabinets, allowing partial replacement to upgrade functionality. With 477mm depth compatible with most domestic cabinets, there is no need to cut shelves or side panels.
Typical Pain Point: In restaurant kitchens and employee canteens, tableware turnover is over 10 times higher than in home kitchens. Standard pull-out baskets often experience rail jams and structural deformation within six months.
Solution: The round wire structure avoids stress concentration from welding points. Combined with reinforced slides, it maintains stable operation for over 3 years even under 50 daily pulls.
| Layer | Material | Function |
|---|---|---|
| Inner | Pearl cotton individual packaging | Surface protection against scratches |
| Middle | Corrugated paper card position | Prevent deformation during transportation |
| Outer | Five-layer corrugated carton | Stacking strength ≥ 200 kg |
| Label | Fragile label + upward arrow | Standard orientation |
Gross weight per box: 3.2–4.8 kg (depending on model)
Volume per box: 0.018–0.035 m³
Container loading: 20ft container approx. 850–1200 sets; 40ft high-cube approx. 1800–2400 sets
Shipping methods: Sea freight (full container / LCL), air freight, land multimodal transport
Special requirements: For high-humidity export regions, add desiccant packs; long-distance sea freight recommended with pallet packaging
Standard model: 45–50 days after order confirmation
OEM customization: 60–75 days after sample confirmation (including mold development)
Urgent orders: 30-day fast channel supported (limited to standard models)
| Item | Parameter |
|---|---|
| Product Series | Round Wire Pull-Out Basket for Narrow Cabinets |
| Model Range | C131–C136 (6 models) |
| Suitable Cabinet Width | 150 / 200 / 300 / 400 / 450 / 500 mm |
| Basket Depth | 477 mm |
| Basket Height | 505 mm |
| Main Material | Cold-rolled steel with chrome plating |
| Slide Type | Soft-close damping three-section slide |
| Slide Load Capacity | ≥25 kg |
| Optional Accessories | PP drip tray |
| Surface Treatment | Chrome, 32-hour salt spray test |
| Installation Method | Side-mounted / Bottom-mounted dual compatibility |
| Applicable Scenes | Residential kitchens, apartments, commercial kitchens, project kitchens |
“Finally managed to use the 15cm cabinet beside the stove.” — Shenzhen, C131 user
Previously, this cabinet could only store items in plastic bags. After installing the pull-out basket, plates, bowls, and small dishes are easily accessible while cooking.
“Even for bulk procurement, the size variation was handled. These six models now cover all cabinet widths for our project.” — Head of cabinet supply chain, certain real estate project
Before, 3–4 suppliers were needed for cabinet widths. Now one supplier covers everything, and acceptance standards are unified.
“Used for two years, slides still smooth, no rust.” — Kitchen manager, Guangzhou restaurant
After long-term use in a commercial kitchen, the basket endured heavy use. Wire structure remains solid, oil residue is easily wiped off.
“During old kitchen renovation, the new basket fits perfectly without modifying cabinets.” — Shanghai, second-hand apartment renovation
Holes aligned correctly; three cabinets installed in half a day as planned.
| Cabinet Type | Recommended Model | Notes |
|---|---|---|
| Extremely narrow cabinet (<15cm) | C131 | Cabinet internal width ≥145mm required |
| Standard apartment kitchen | C133 | 300mm cabinet width common |
| Large homes / Villas | C135–C136 | Can be combined with spice basket sets |
| Project kitchens / Bulk orders | Full series | Recommend confirming cabinet drawings before ordering |
| Old kitchen partial replacement | Measured internal width cabinet | Allow ±3mm on-site adjustment |
Guangzhou Welldo Hardware Co., Ltd.
Specializing in kitchen storage systems since 2005.
