Product Specifications

Narrow Cabinet Size & Model Guide

The E131 Series is available in multiple widths to match different narrow kitchen cabinet designs.

For cabinet manufacturers and project buyers, detailed product dimensions and installation drawings can be provided according to the selected model.

Recommended Additional Data

To help buyers select the correct model more accurately, the following dimensions should be confirmed before ordering:

• Cabinet internal width

• Minimum cabinet depth

• Product overall width

• Product overall depth

• Product overall height

• Number of basket tiers

• Maximum loading capacity

Please contact Welldo for detailed drawings and technical specifications for each cabinet size.

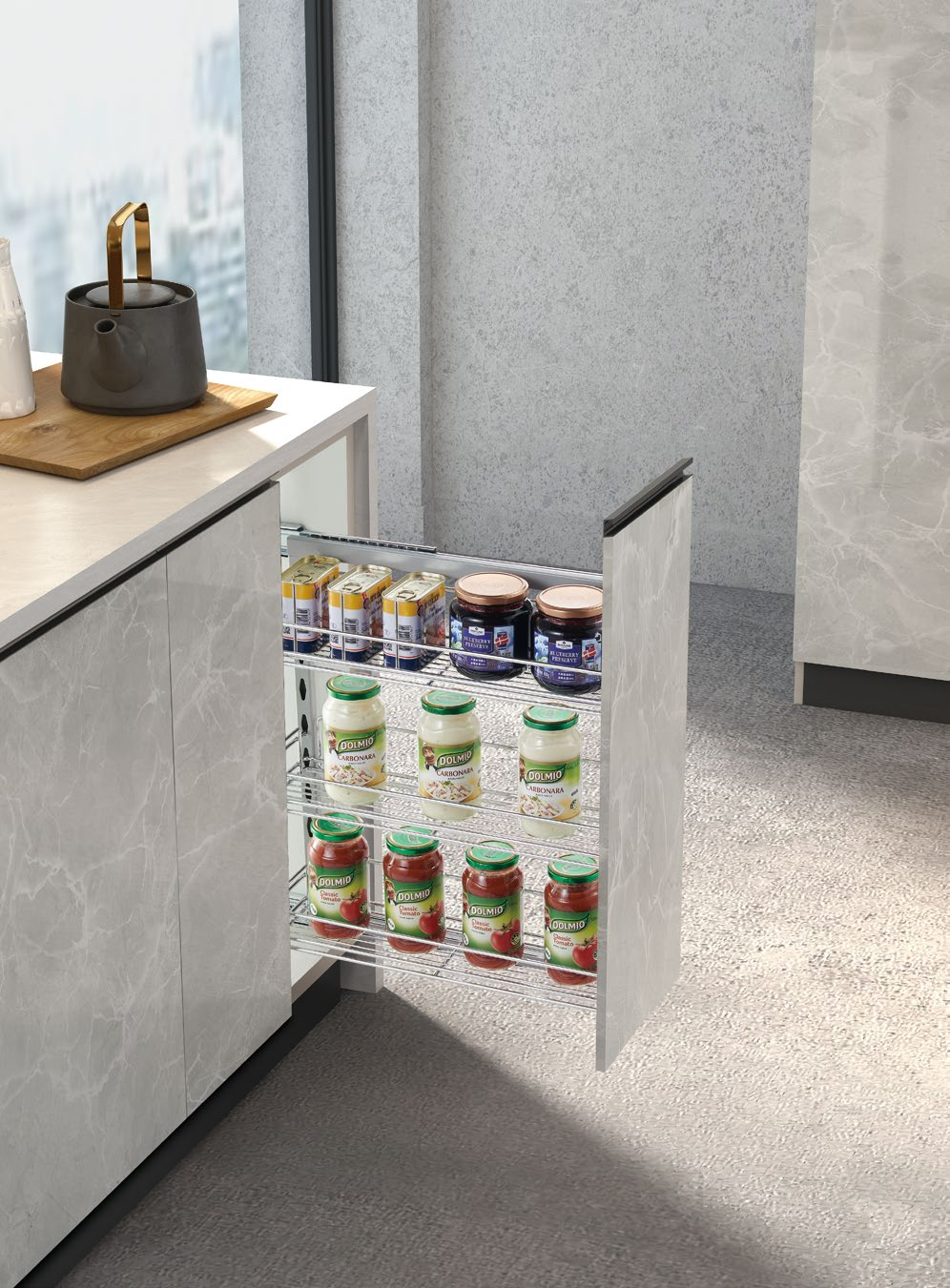

Why Choose a Narrow Pull Out Pantry Basket?

1. Designed Specifically for 150–300mm Narrow Cabinets

Many kitchens have narrow cabinet spaces where conventional drawers, shelves or full-size pantry units cannot be installed efficiently.

The E131 Series is designed specifically for these slim cabinet modules.

With cabinet width options starting from only 150mm, it helps kitchen designers convert narrow spaces into functional pull-out storage instead of leaving them unused.

Suitable locations include:

• Narrow cabinets beside cooking areas

• Slim cabinet modules beside refrigerators

• Small pantry cabinets

• Spaces between standard cabinet units

• Customized compact kitchens

• Apartment kitchen projects

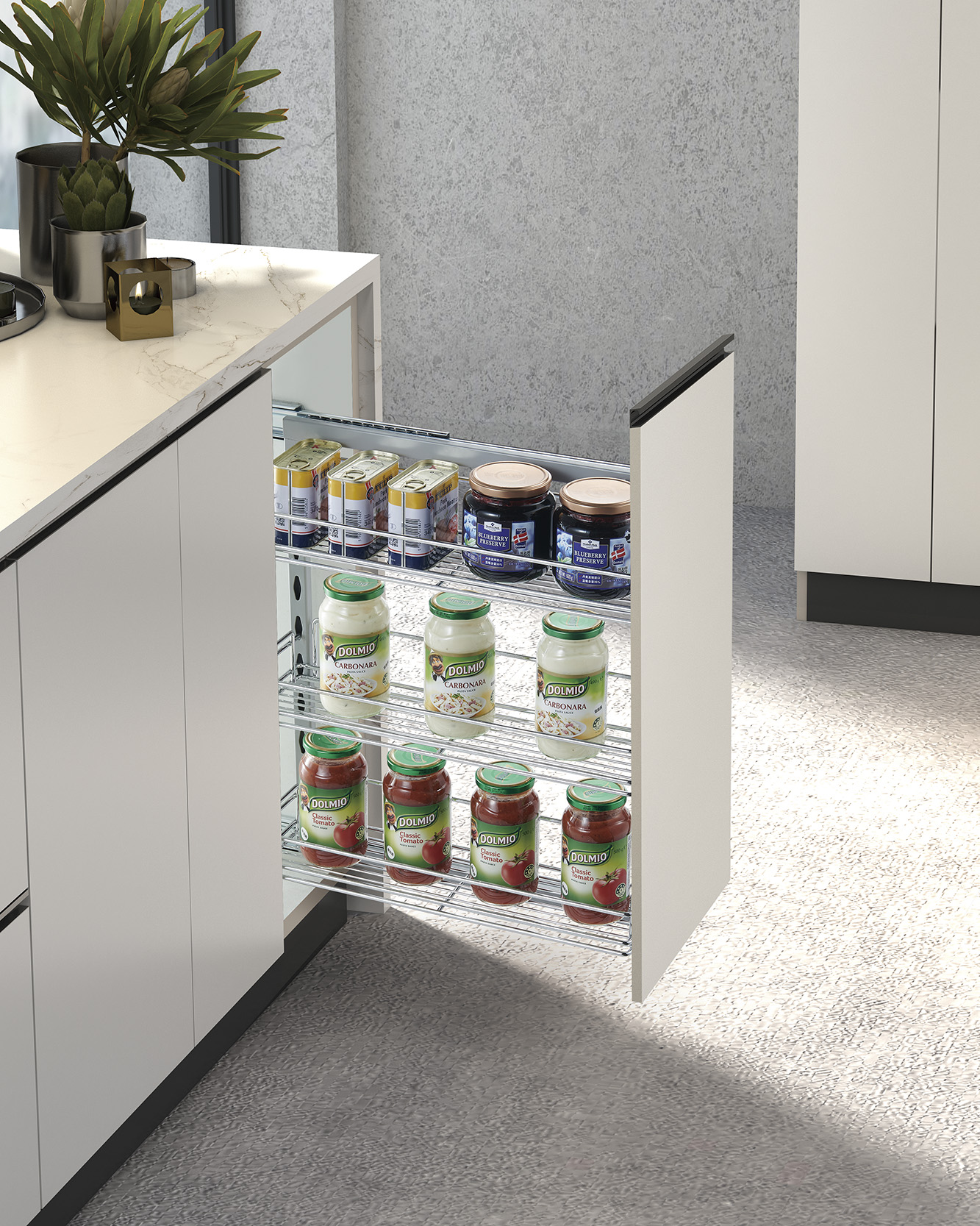

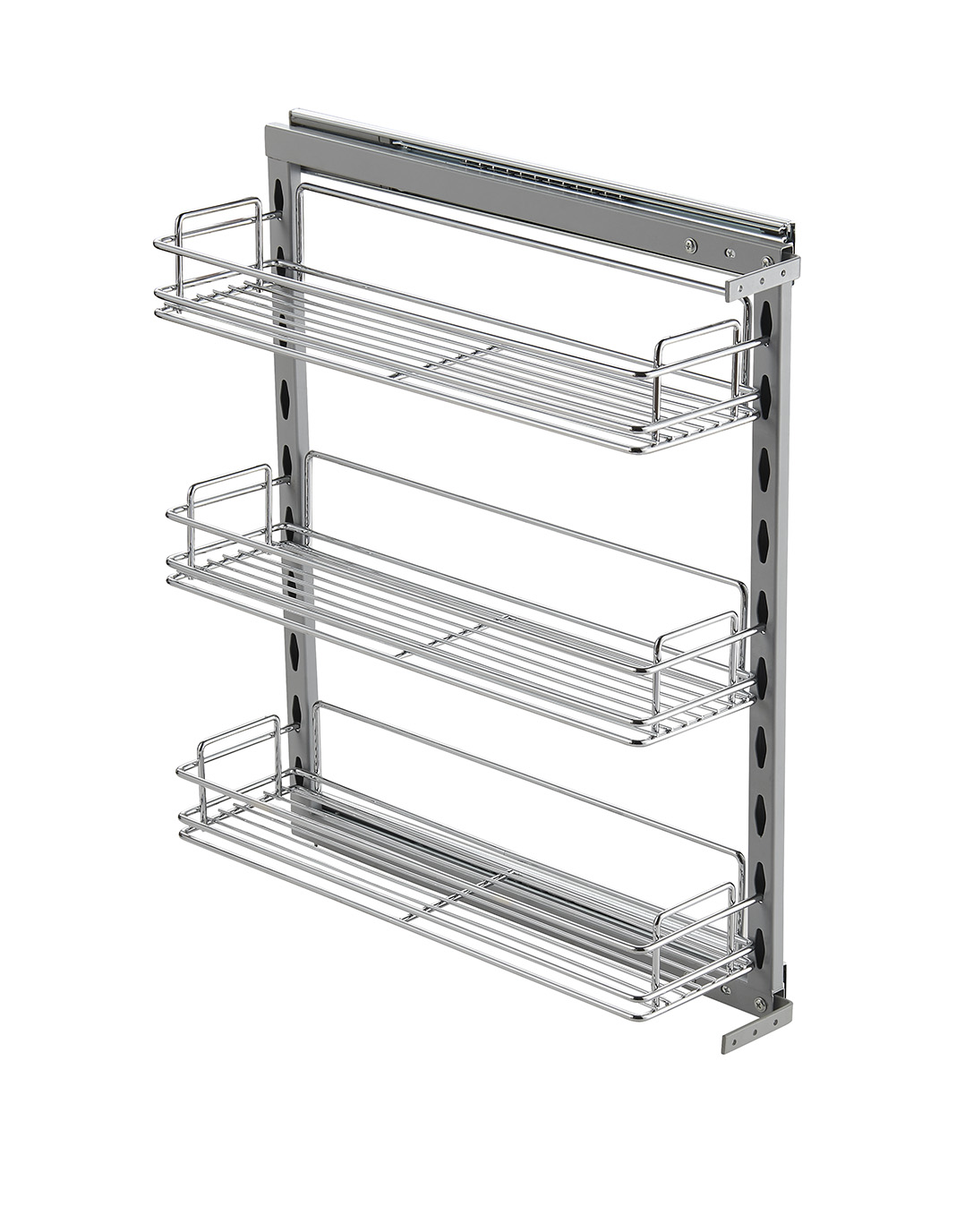

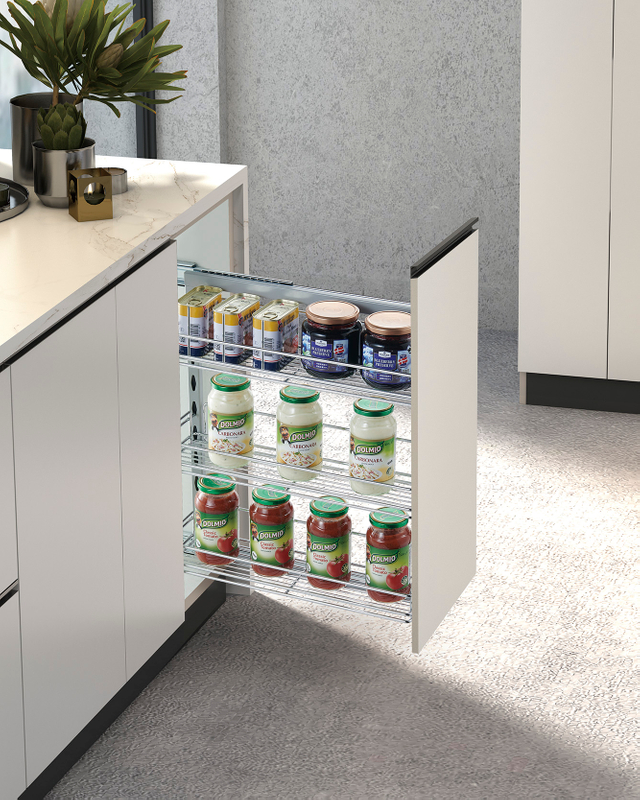

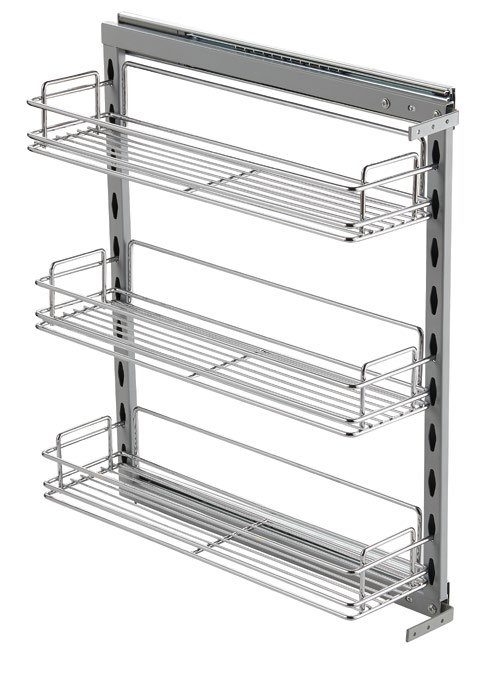

2. Side Mounted Pull Out Structure

The E131 Series uses a side-mounted pull-out mechanism, allowing the basket system to slide outward from the cabinet for convenient access.

Compared with fixed narrow shelves, the pull-out design makes stored items more visible and easier to reach.

Users do not need to reach deep inside a narrow cabinet to find bottles or pantry products at the back.

This structure is particularly useful in deep, narrow kitchen cabinets.

3. Multi-Tier Storage for Better Organization

Multiple storage levels help separate different types of kitchen supplies and make better use of vertical cabinet space.

Suitable for organizing:

• Cooking oil

• Sauce bottles

• Vinegar

• Condiments

• Spice jars

• Canned food

• Dry food packages

• Beverage bottles

• Small pantry containers

Different categories can be stored on separate levels, improving visibility and keeping the cabinet more organized.

E131 Narrow Pull Out vs Standard Tall Pantry Pull Out

Not every pantry pull-out system is designed for the same cabinet size.

The E131 Series focuses on very narrow cabinets between 150mm and 300mm, while conventional tall pantry units are generally designed for larger cabinet modules.

Which One Should You Choose?

Choose the E131 Narrow Pull Out Pantry Basket when the available cabinet width is between 150mm and 300mm and the main requirement is efficient storage of bottles, condiments and pantry items.

For wider tall cabinets requiring significantly higher loading capacity and full-height pantry storage, a standard tall pantry pull-out system may be more suitable.

Space-Saving Storage for Slim Kitchen Cabinets

Make Better Use of Narrow Cabinet Space

A 150mm or 200mm kitchen cabinet can easily become inefficient when fitted only with fixed shelves.

Because the opening is narrow and the cabinet is relatively deep, products stored at the back can be difficult to see and access.

A pull-out basket changes the way this space is used.

Instead of reaching inside the cabinet, users can pull the complete storage system outward and access stored products from the side.

This improves:

• Cabinet accessibility

• Storage visibility

• Space utilization

• Product organization

• Everyday kitchen convenience

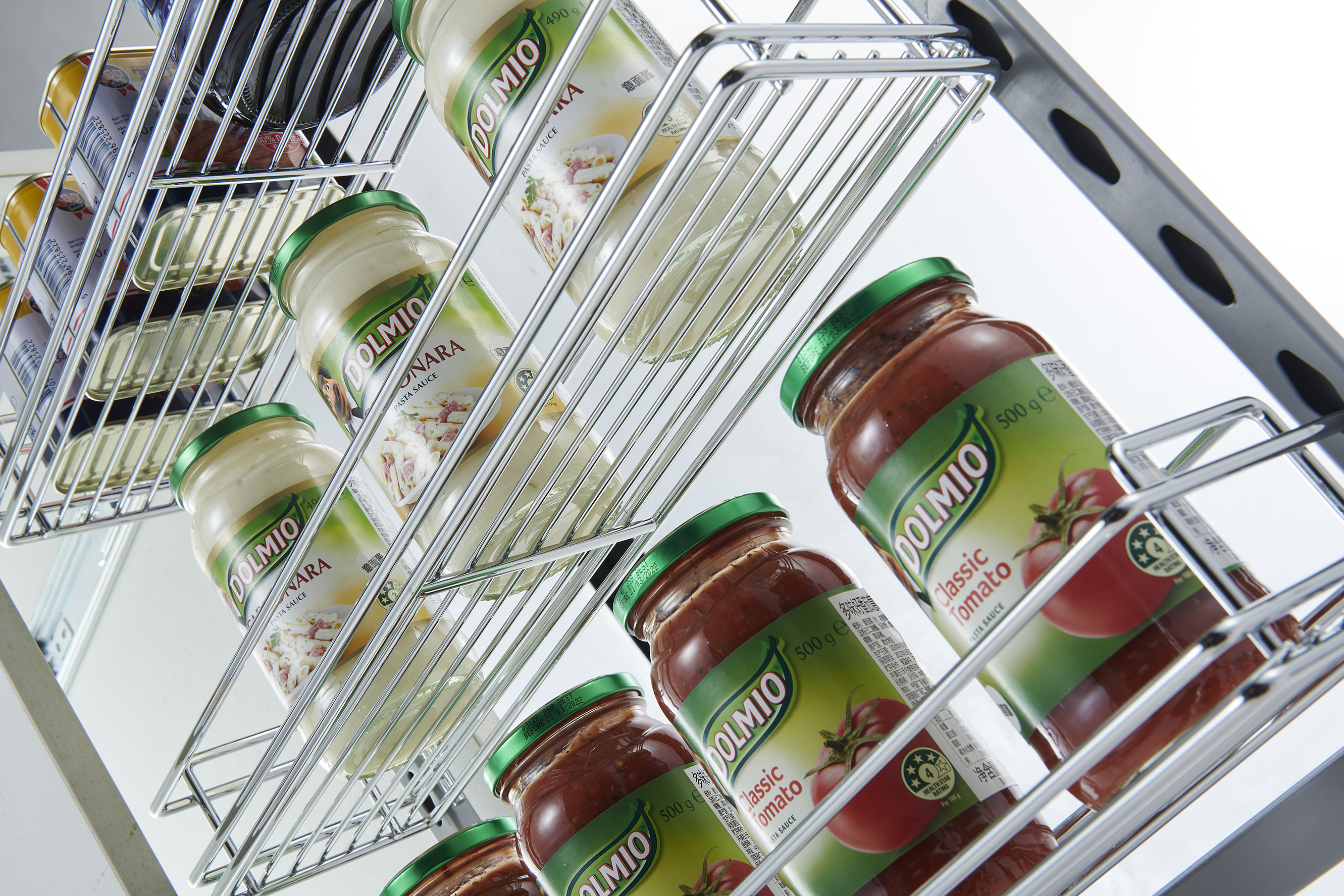

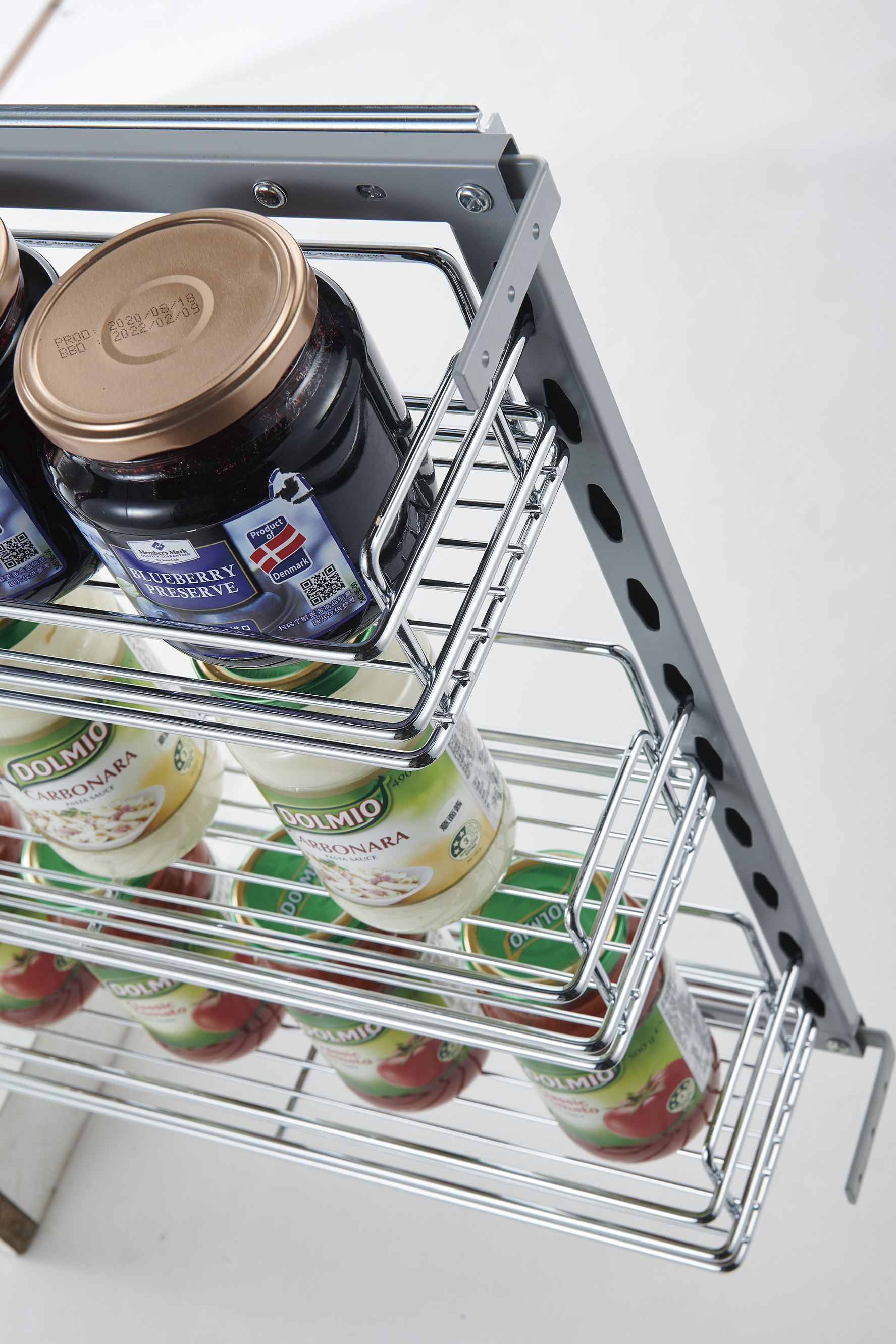

Steel Wire Basket Structure

The basket is manufactured from steel wire to provide a strong and practical storage structure for daily kitchen use.

The open-wire basket design allows users to quickly identify stored products while helping prevent small bottles and containers from becoming hidden inside deep cabinet spaces.

Main Advantages of Wire Basket Storage

• Strong metal construction

• Lightweight open structure

• Clear visibility of stored products

• Suitable for bottles and jars

• Easy to clean

• Practical for everyday kitchen storage

Chrome Plated Surface Finish

The E131 Series features a chrome-plated surface finish, giving the basket a clean metallic appearance suitable for different kitchen cabinet styles.

The chrome finish also provides a classic appearance widely used in kitchen cabinet storage hardware.

For OEM or project requirements, please contact Welldo to confirm available surface treatment options.

Side Mounted Pull Out Installation

The E131 Series is designed for side-mounted installation inside narrow kitchen cabinets.

Before ordering, buyers should confirm the following cabinet information:

1. External cabinet width

2. Internal cabinet width

3. Cabinet depth

4. Cabinet height

5. Left or right installation requirement, if applicable

6. Cabinet board thickness

Providing complete cabinet dimensions allows us to recommend the most suitable model and reduce installation problems during project production.

Installation Drawing

Detailed installation drawings and mounting dimensions are available upon request.

For OEM cabinet projects, Welldo can also provide technical information for integration into cabinet production.

uitable Applications

Narrow Kitchen Pantry Cabinet

Transforms a slim cabinet module into practical pantry storage.

Bottle and Condiment Storage

Ideal for storing:

• Cooking oils

• Sauces

• Vinegar

• Beverage bottles

• Seasonings

Spice and Jar Organizer

Multiple basket levels make it easier to separate spice jars, canned products and small pantry containers.

Apartment and Compact Kitchen Storage

Suitable for kitchen designs where cabinet space is limited and every narrow module needs to provide useful storage.

Kitchen Cabinet Manufacturing Projects

The E131 Series can be integrated into customized kitchen cabinet systems for:

• Kitchen cabinet manufacturers

• Cabinet wholesalers

• Kitchen hardware distributors

• Residential kitchen projects

• Apartment projects

• Customized furniture manufacturers

Why Side Pull Out Storage Works Better in Narrow Cabinets

Traditional fixed shelves can be inconvenient in narrow and deep cabinet spaces because the opening provides limited visibility.

With a side pull-out basket, the complete storage system moves outward from the cabinet.

This means users can:

• See stored products more clearly

• Reach items from different levels

• Organize bottles by category

• Reduce unused space at the back of the cabinet

• Keep pantry items easier to manage

For cabinets between 150mm and 300mm wide, this type of pull-out storage provides a practical alternative to standard drawers and fixed shelves.

OEM & Customization Support

As a kitchen cabinet storage hardware manufacturer, Welldo supports OEM and ODM cooperation for distributors, cabinet manufacturers and project customers.

Available OEM Services May Include

• Cabinet size adaptation

• Basket configuration

• Basket height

• Number of storage levels

• Surface treatment

• Product branding

• Logo marking

• Product labels

• Customized cartons

• Installation accessories

• Customer-specific packaging

Custom requirements are evaluated according to product structure and order quantity.

Please send us your cabinet dimensions, required quantity and target market so our team can recommend the appropriate solution.

For Distributors & Cabinet Manufacturers

The E131 Series is suitable not only for individual kitchen installations but also for B2B supply and cabinet production programs.

We work with:

• Kitchen cabinet manufacturers

• Furniture hardware importers

• Cabinet hardware distributors

• Kitchen accessory wholesalers

• Furniture brands

• Construction projects

• Residential developers

B2B Information

MOQ: Please contact us according to model and customization requirements.

Sample: Sample order available.

OEM / ODM: Supported.

Private Label: Available according to order requirements.

Packaging: Standard export packaging or customized packaging.

Technical Drawing: Available for project confirmation.

Bulk Orders: Supported.

Why Choose Welldo?

Kitchen Storage Hardware Manufacturer Since 2005

Welldo specializes in kitchen cabinet organizers and wardrobe storage hardware, supplying cabinet manufacturers, distributors and project customers in international markets.

Our product range includes:

• Pull out baskets

• Tall pantry units

• Corner cabinet organizers

• Pull down baskets

• Kitchen waste bins

• Wardrobe accessories

What We Support

• Factory direct supply

• OEM and ODM development

• Custom cabinet sizes

• Product drawings

• Customized surface finishes

• Private-label packaging

• Bulk production

• International export orders

If you are sourcing narrow pull-out pantry baskets for your cabinet range, contact Welldo with your required cabinet sizes and quantities.

FAQ

1. What cabinet widths are available for the E131 narrow pull out pantry basket?

The E131 Series is available for 150mm, 180mm, 200mm, 250mm, 260mm and 300mm kitchen cabinets.

Please confirm the internal cabinet dimensions before ordering.

2. Is this basket suitable for a 150mm kitchen cabinet?

Yes. Model E131 is designed for a 150mm cabinet.

For accurate installation, we recommend confirming the internal cabinet width, cabinet depth and mounting dimensions before production.

3. Is the E131 basket side mounted or bottom mounted?

The E131 Series uses a side-mounted pull-out structure.

Please contact us for installation drawings if you need detailed mounting dimensions.

4. What can be stored in this narrow pull out basket?

It is suitable for storing kitchen pantry products including:

• Oil bottles

• Sauce bottles

• Condiments

• Spice jars

• Canned food

• Dry food packages

• Beverage bottles

• Small pantry containers

5. What is the difference between this product and a tall pantry pull out?

The E131 Series is mainly designed for very narrow cabinets from 150mm to 300mm.

Standard tall pantry pull-out systems normally require wider cabinets and are intended for larger-capacity storage.

The E131 is therefore more suitable when the priority is using a narrow cabinet efficiently.

6. Does the pull out basket include soft closing slides?

[TO CONFIRM: Insert the actual slide specification here.]

Recommended final wording if soft-close is included:

“The basket is equipped with a soft-closing slide system for smooth and quiet operation.”

If it is not soft-close, do not mention this feature.

7. What is the loading capacity?

[TO CONFIRM: Insert actual tested loading capacity.]

We recommend publishing the real tested loading capacity rather than using an estimated value.

8. Can you customize this product for our cabinet dimensions?

Yes. Welldo supports OEM and ODM requirements for cabinet manufacturers, distributors and project customers.

Please provide your cabinet dimensions, required quantity and installation requirements for evaluation.

9. Can you provide installation drawings?

Yes. Product drawings and installation information can be provided for order or project confirmation.

10. Can we customize the logo and packaging?

Yes. Private-label products, labels and customized cartons can be supported according to the order quantity and project requirements.

Looking for a Narrow Pull Out Basket for Your Cabinet Range?

Tell us:

• Cabinet width

• Cabinet internal dimensions

• Required quantity

• Target market

• Surface finish requirement

• OEM or packaging requirement

Our team will recommend the appropriate model and provide quotation, drawings and project support.

Contact Welldo for product catalog, technical drawings and wholesale quotation.
