A kitchen pull-out basket can improve cabinet organization and make stored items easier to reach. However, even a well-designed basket may not operate correctly if the product and cabinet are not properly matched.
Many installation problems begin before the product arrives. Incorrect measurements, overlooked hinges and unsuitable mounting positions can cause interference, uneven movement or insufficient storage space.
Here are seven common installation mistakes and the information buyers should confirm before ordering kitchen pull-out baskets.
One of the most common mistakes is selecting a basket according to the cabinet’s external width without checking the clear internal width.
For example, a cabinet described as 400mm wide does not provide 400mm of usable internal space. The two side panels reduce the available width, and hinges or mounting plates may reduce it further.

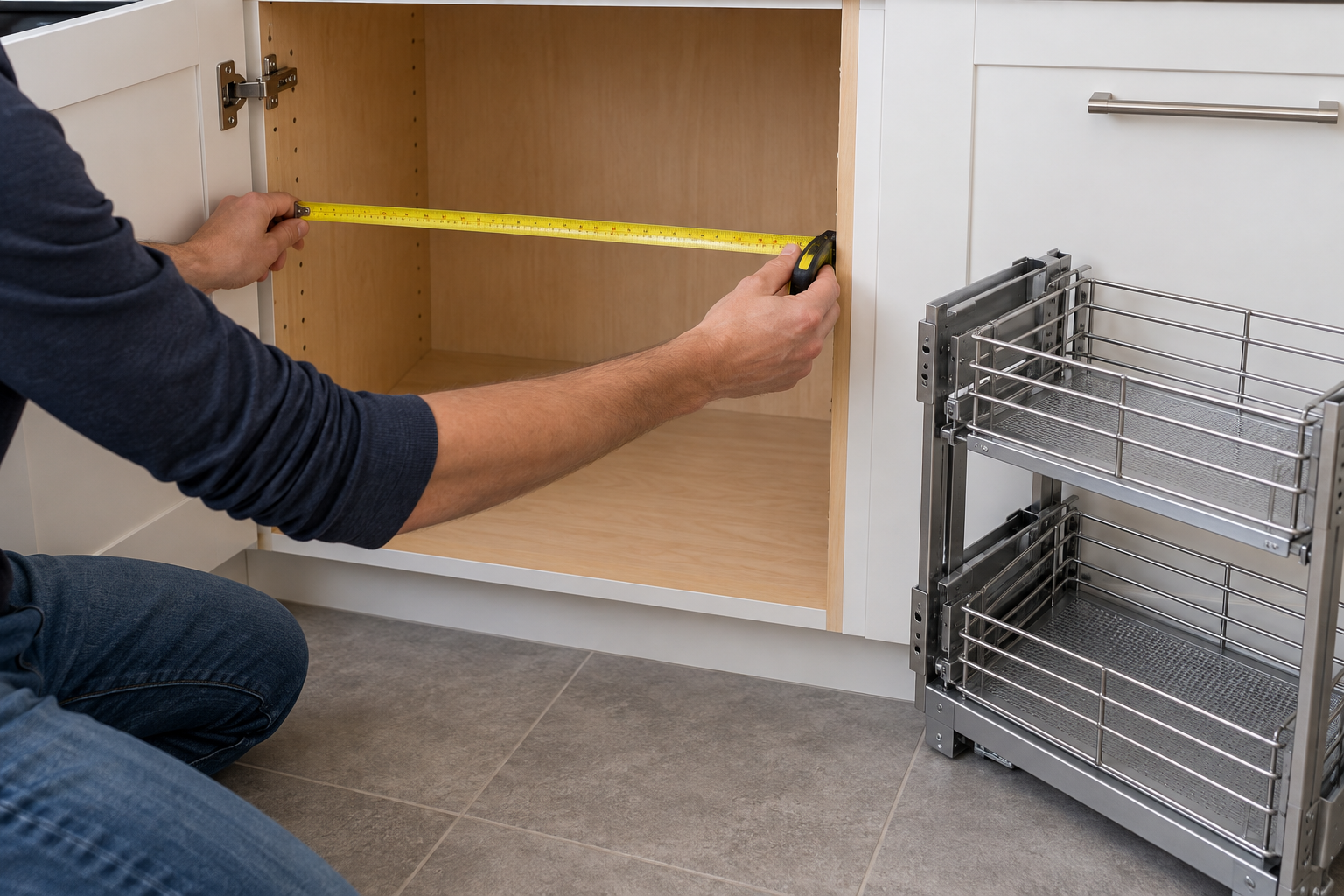

Measure the clear internal width between the cabinet side panels. If hinges or other fittings extend into the cabinet, use the narrowest available point.
Send both the nominal cabinet width and the actual internal width to the supplier before confirming the model.
Cabinet panel thickness affects the internal installation space. Two cabinets with the same external width may have different internal dimensions if they use different panel thicknesses.
This becomes especially important for narrow pull-out baskets, where a small difference can affect the position of the slides or mounting frame.
Confirm the thickness of both cabinet side panels. Common cabinet constructions vary between markets, so the supplier should not be expected to assume the panel thickness.
A technical cabinet drawing is preferable for project orders.
The pull-out frame, basket or stored items may contact the door hinges when the product moves.
This problem is common when the basket occupies most of the internal cabinet width or when large hinge plates extend into the installation area. The cabinet door may also fail to open far enough for the basket to extend fully.
Check:
Hinge position
Hinge projection inside the cabinet
Door opening angle
Handle position
Available space when the door is fully open
For door-mounted products, confirm the door connection points and drilling positions before installation.

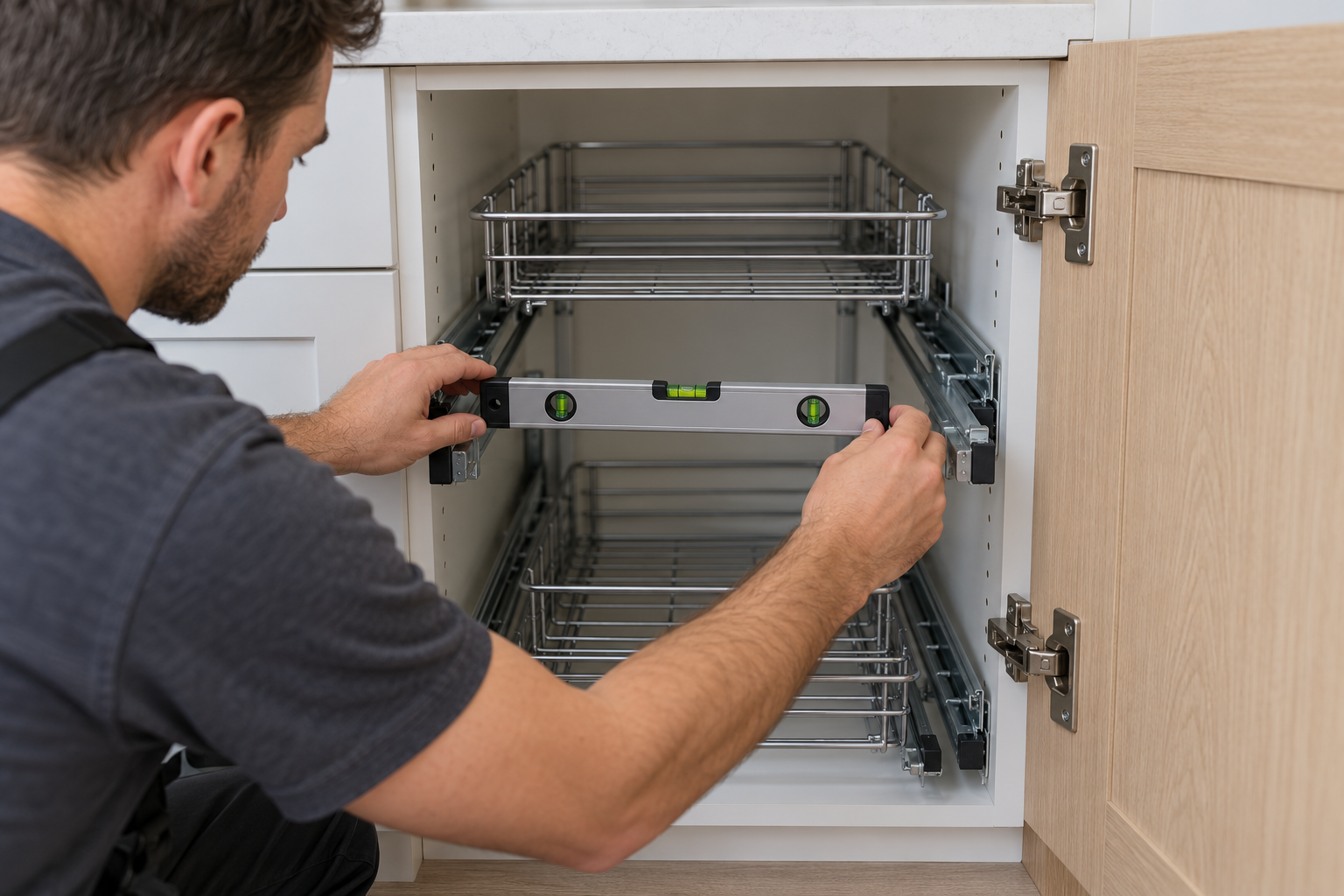

Pull-out basket slides must be installed level, parallel and at the correct distance from each other. If the two sides are not aligned, the basket may become difficult to operate or move unevenly.
Uneven installation can also place unnecessary stress on the slides and mounting points.

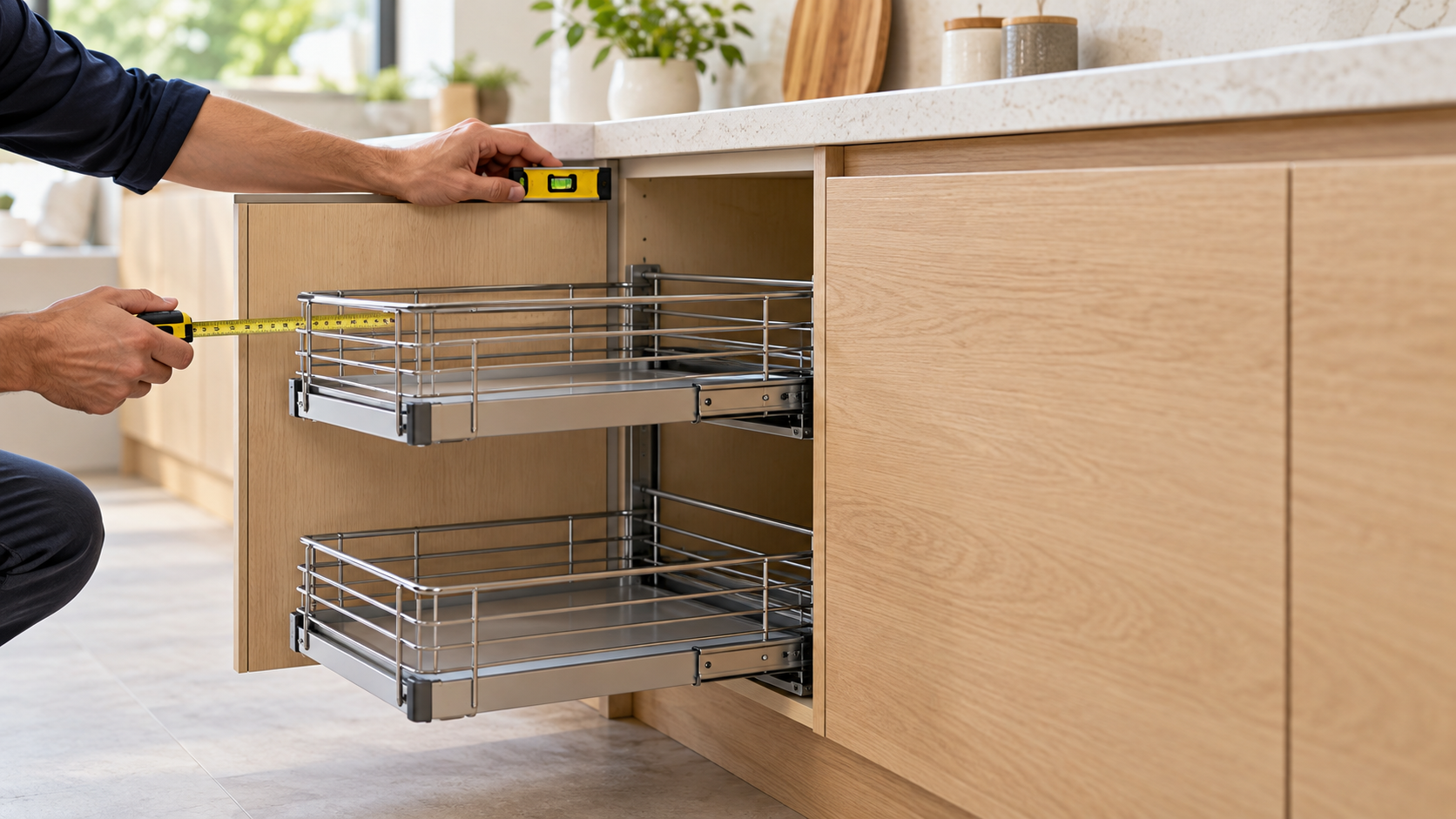

Use the installation drawing or template supplied with the product. Mark all mounting points before drilling and check that the cabinet base and side panels are square.
After the frame is installed, test the movement before loading the basket.
Do not force a basket that does not move smoothly. The slide alignment and mounting position should be checked first.
A basket may fit the cabinet width but still be too deep for the available space.
The usable cabinet depth can be reduced by:
Back panels
Structural rails
Pipes
Electrical sockets
Door-mounted components
Other cabinet hardware
If the product is too deep, the cabinet door may not close or the basket may not retract completely.
Measure from the front installation position to the nearest obstruction at the back of the cabinet.
Compare this measurement with the complete product depth, including the slides, frame and any rear components.
Product dimensions should not be confused with carton or packaging dimensions.

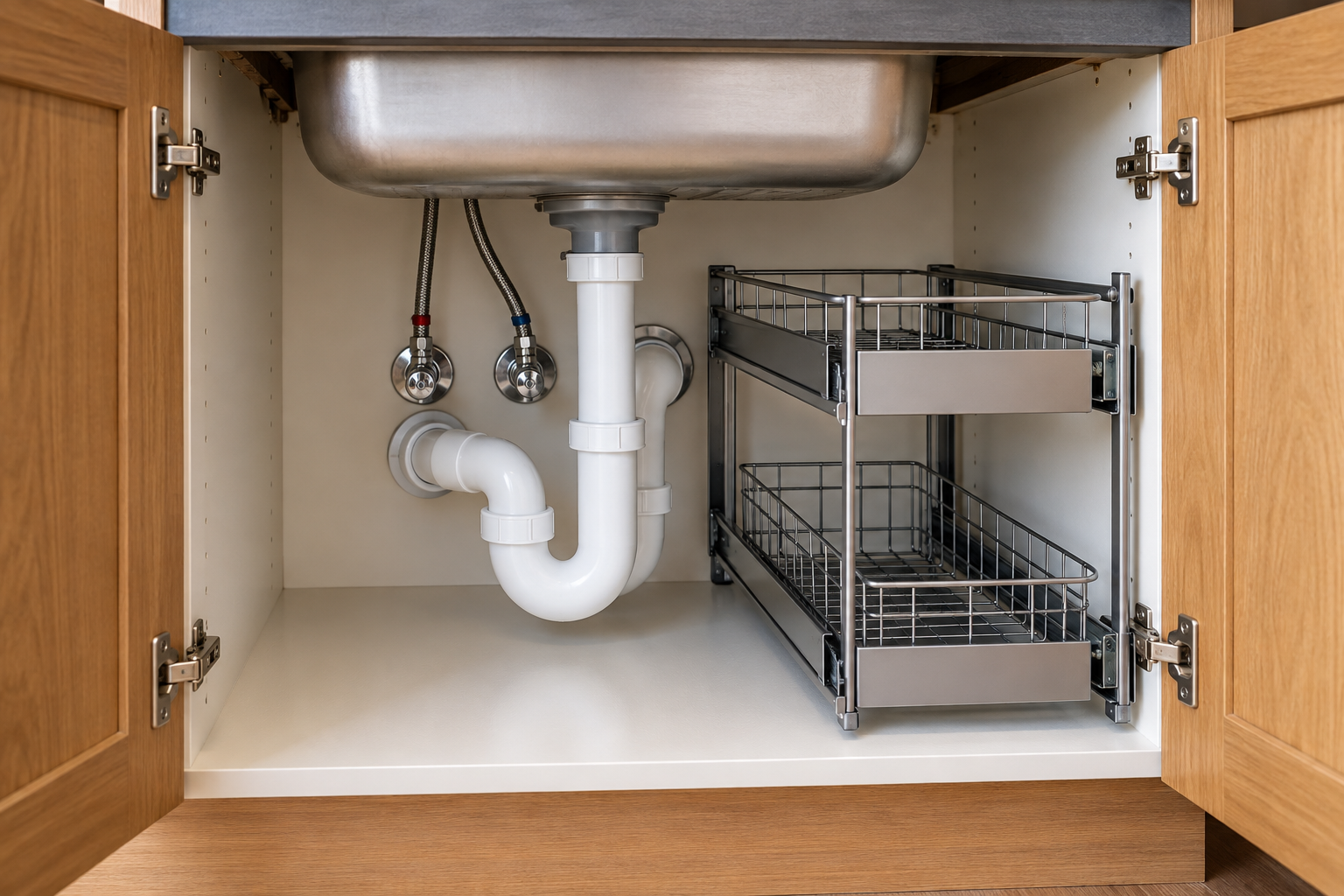

Under-sink cabinets require special attention because drainpipes, water pipes, valves and sink bowls often occupy the same space required by the storage system.
A basket that appears suitable for the cabinet width may interfere with the plumbing during operation.
Similar problems can occur when sockets, waste disposers or internal cabinet supports are not shown in the original drawing.
Provide the supplier with:
A front-view photograph
A top-view photograph
Internal cabinet dimensions
Pipe positions and diameters
Sink bowl depth
Distance from each obstacle to the cabinet panels
For a new kitchen project, confirm the basket layout before fixing the final plumbing positions whenever possible.
A pull-out basket may operate smoothly when empty but perform differently after it is filled with bottles, cookware or tableware.
The total load includes the weight of the basket, accessories and stored items. Placing heavy items unevenly can also affect movement.
The cabinet structure and fixing points must be strong enough to support the complete loaded system.
Tell the supplier what the basket will normally store. A condiment basket carrying tall bottles has different load and stability requirements from a basket used for lightweight food packaging.
Follow the recommended load and distribute stored items evenly. All fixing screws should be installed in suitable cabinet material and checked regularly.
Before selecting a kitchen pull-out basket, prepare the following information:
Nominal cabinet width
Clear internal width
Usable internal depth
Usable internal height
Cabinet panel thickness
Door opening direction and angle
Hinge position
Pipes or other internal obstacles
Intended stored items
Expected load
Required quantity
Target market
Photographs and technical drawings can help the supplier identify possible installation conflicts before production.
For a new cabinet project, the basket model should be selected before the cabinet drawings are finalized. This allows the cabinet dimensions, door structure and mounting points to be planned around the product.
For an existing cabinet, accurate measurements are more important because the available space cannot easily be changed. Never assume that a product suitable for a nominal cabinet size will automatically fit every existing cabinet.
Some basic pull-out baskets can be installed using standard tools, but more complicated systems may require a professional cabinet installer.
Professional installation is recommended when:
The product connects directly to the cabinet door
Precise slide alignment is required
The cabinet contains plumbing
The product carries a heavy load
Electrical components are involved
The cabinet must be modified
The installer should follow the product drawing and installation instructions rather than relying only on previous experience with a different model.
Before completing the installation, confirm that:
All screws are tightened
The slides are level and parallel
The basket extends and retracts smoothly
The door closes completely
Hinges do not interfere with the product
Stored items do not exceed the recommended load
Pipes and other components remain accessible
The basket can be removed for cleaning when applicable
Test the system several times before placing all stored items inside.
Successful pull-out basket installation begins with correct product selection and accurate cabinet information.
Checking the internal dimensions, cabinet panels, hinges, slide alignment, obstacles and expected load before ordering can prevent most installation problems.
For distributors, kitchen manufacturers and project buyers, confirming these details early also reduces modification costs and after-sales issues.
