The basket material affects more than the appearance of a kitchen storage product. It can also influence weight, corrosion resistance, maintenance, price positioning and compatibility with the pull-out mechanism.

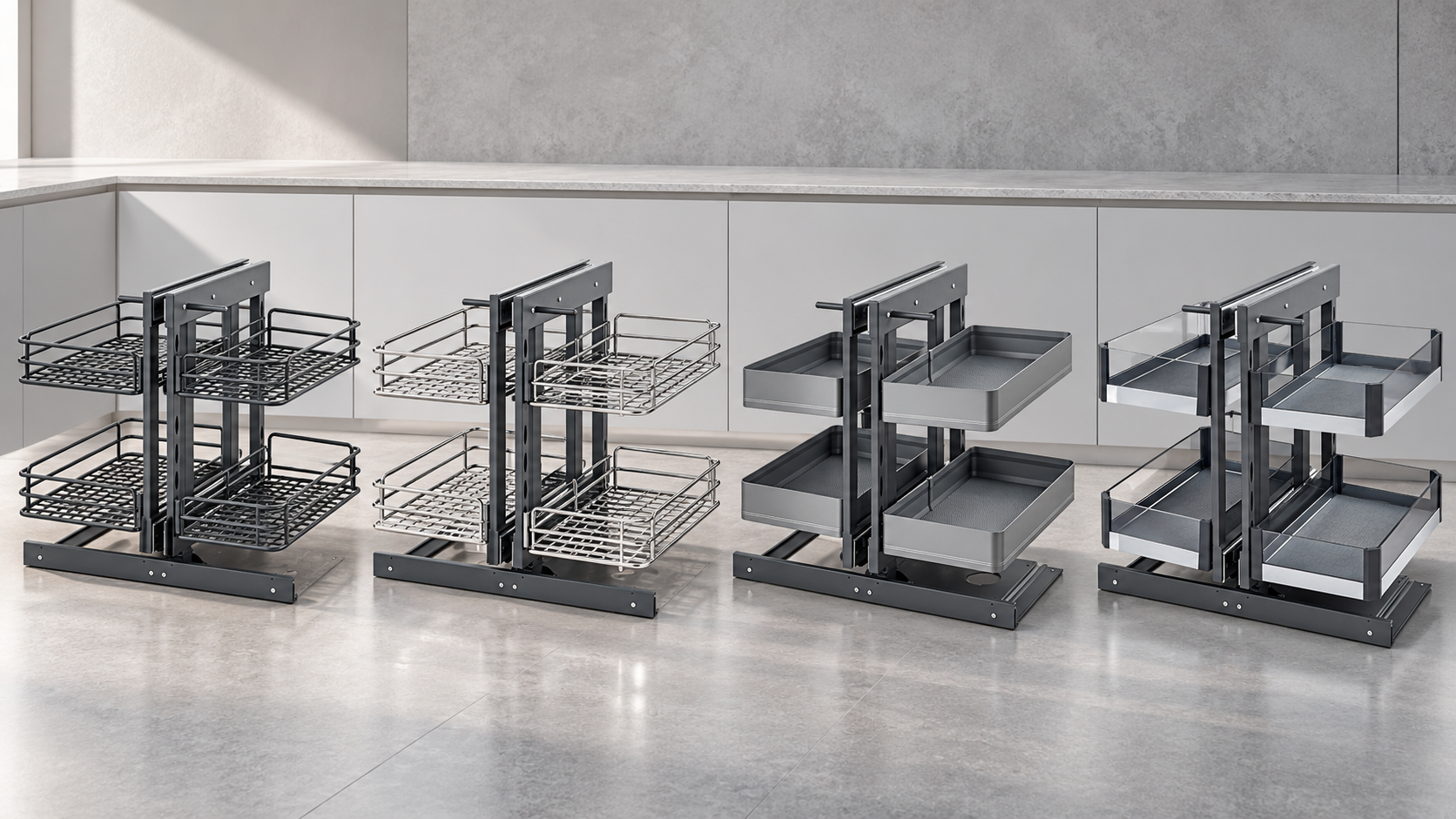

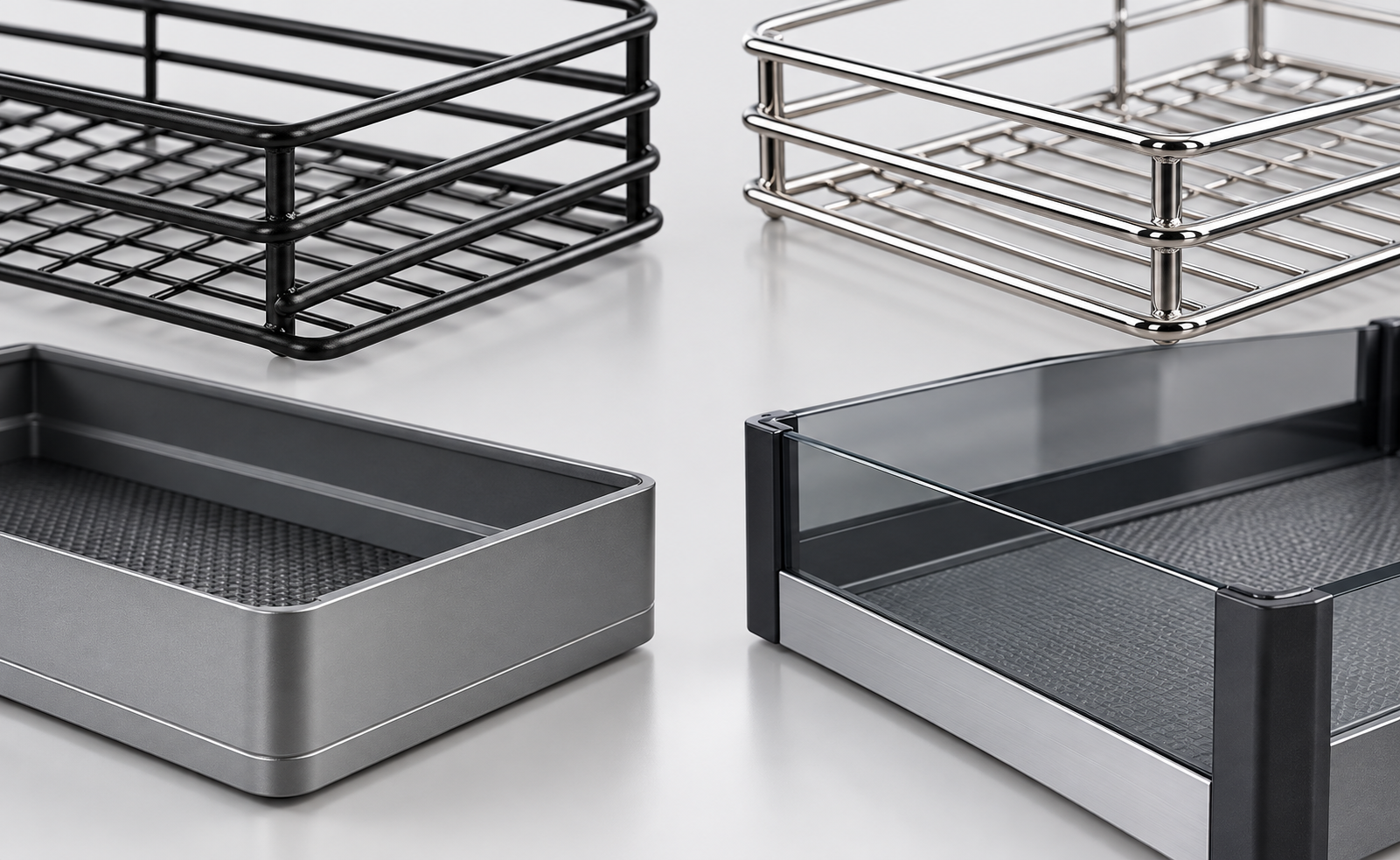

Welldo can configure kitchen and wardrobe baskets using iron, 201 stainless steel, 304 stainless steel, aluminum and glass elements. Each material has its own advantages, and no single option is ideal for every market or project.
This guide compares the main material choices and explains what buyers should consider before confirming a product specification.
A basket is used repeatedly and may be exposed to moisture, cooking residue, cleaning products and changing loads.
The material choice can affect:
Product appearance
Basket weight
Corrosion resistance
Surface treatment requirements
Cleaning and maintenance
Production cost
Target retail price
Suitable installation environment
Load on the slides or lifting mechanism
For distributors and kitchen manufacturers, the best material should be selected according to the target customer and actual use—not appearance alone.
Iron is widely used for kitchen pull-out baskets because it offers good structural strength and flexible manufacturing possibilities.
Iron baskets can be produced in different wire diameters, shapes and surface finishes. Depending on the product design, the surface may be plated, painted or powder-coated.
Practical and cost-effective
Suitable for different basket structures
Good rigidity for wire basket designs
Flexible color and surface options
Appropriate for standard residential projects
Iron requires a suitable protective finish because exposed iron can rust in humid environments.
The quality of the welding, surface preparation and coating affects the final durability. Scratches or damaged coating may expose the base metal, so packaging and handling are also important.
Iron is suitable for price-sensitive markets, standard kitchen projects and products requiring customized colors or decorative finishes.
201 stainless steel provides a metallic appearance at a more controlled cost than 304 stainless steel.
It is commonly considered when buyers want the look of stainless steel but do not require the same level of corrosion resistance associated with 304 grade.
Clean metallic appearance
Good strength
More economical than 304 stainless steel
Suitable for many indoor kitchen applications
Can support mid-range product positioning
201 stainless steel generally has lower corrosion resistance than 304 stainless steel, particularly in humid, salty or chemically demanding environments.
The suitability of 201 stainless steel depends on the market, expected moisture exposure and cleaning conditions.
It can be suitable for dry indoor kitchens, mid-range residential projects and markets where appearance and cost need to be balanced.
304 stainless steel is often selected for projects that place greater importance on corrosion resistance, durability and material specification.
It is frequently used in kitchen environments because it performs well under normal indoor moisture and cleaning conditions.
Better corrosion resistance than 201 stainless steel
Premium material positioning
Clean and durable appearance
Suitable for humid kitchen environments
Easier to specify for higher-end projects
304 stainless steel normally costs more than iron or 201 stainless steel.
Surface finish and fabrication quality still matter. Stainless steel is not automatically maintenance-free, and contamination or aggressive cleaning chemicals may affect the surface.
304 stainless steel is suitable for premium kitchens, coastal or humid markets, higher-specification residential projects and buyers who explicitly require 304-grade material.

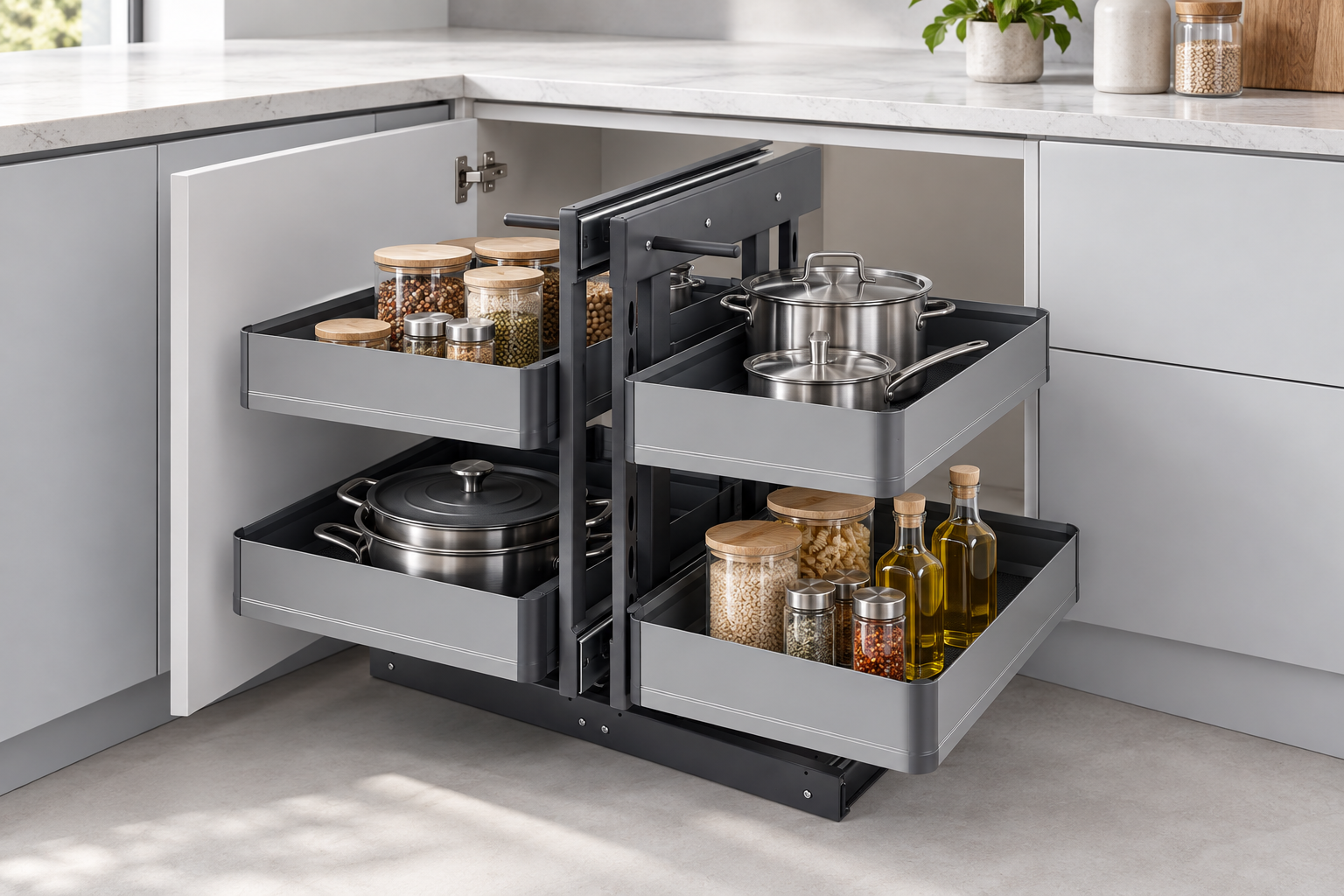

Aluminum is lighter than iron and stainless steel, making it useful for products where appearance and weight are important.
It can be combined with flat panels, profiles or decorative components to create a modern and minimalist style.
Lightweight
Modern appearance
Naturally resistant to red rust
Suitable for premium contemporary designs
Reduces the moving weight of pull-out or lifting systems
Aluminum has different strength and surface characteristics from steel. Product structure, profile thickness and connection methods must be designed accordingly.
Its surface can still be scratched or damaged, so an appropriate finish and protective packaging are necessary.
Aluminum is suitable for modern kitchen and wardrobe systems, premium product lines and moving mechanisms where lower basket weight is beneficial.
Glass is generally used together with a metal frame rather than as the complete load-bearing structure.
Glass side panels or decorative inserts can make a basket appear more open, refined and suitable for luxury interiors.
Premium and decorative appearance
Visually lighter than a fully enclosed metal panel
Coordinates well with modern kitchen and wardrobe designs
Makes stored items easier to see
Suitable for high-end product collections
Glass increases packaging and transportation requirements. The edges, thickness and fixing structure must be properly designed.
Buyers should confirm whether tempered glass is required and how replacement components will be handled. Glass must also be protected from direct impact during installation and use.
Glass elements are suitable for luxury wardrobes, premium kitchen storage and projects where visual design is as important as storage function.
Material | Main Advantage | Main Consideration | Typical Positioning |
|---|---|---|---|
Iron | Flexible and economical | Requires protective surface treatment | Standard market |
201 stainless steel | Metallic appearance at controlled cost | Lower corrosion resistance than 304 | Mid-range market |
304 stainless steel | Better corrosion resistance | Higher material cost | Premium market |
Aluminum | Lightweight and modern | Structure and finish require careful design | Modern premium market |
Glass elements | Decorative and luxurious | Requires stronger packaging and careful handling | High-end market |
This comparison is general. Actual performance also depends on material thickness, wire diameter, product structure, surface treatment and manufacturing quality.
The choice should be based on the application rather than the appearance alone, because both materials may look similar after polishing or surface finishing.
Choose 201 stainless steel when:
The product is used in a relatively dry indoor environment
Cost control is important
The market mainly requires a stainless-steel appearance
The product is positioned in the middle price range
Choose 304 stainless steel when:
Better corrosion resistance is required
The destination market is humid or coastal
The customer specifies the stainless-steel grade
The product is intended for premium projects
Material grade should be clearly stated in the quotation, specification sheet and order documents to prevent misunderstanding.
Basket weight affects the slides, pull-out frame and lifting mechanism.
A heavier basket may require:
Higher-capacity slides
Stronger mounting points
A different counterbalance setting
Reinforced cabinet panels
Additional testing under full load
This is especially important for pull-down baskets, tall cabinet systems and other products where the complete loaded basket moves vertically or extends far outside the cabinet.
The supplier should know the selected material and expected storage load before confirming the final mechanism.
Before selecting the basket material, confirm:
What will be stored in the basket?
Will the product be exposed to high humidity?
What price level is required?
Is a specific stainless-steel grade required?
Is low basket weight important?
Does the design require glass side panels?
What surface finish or color is preferred?
What slide or lifting mechanism will be used?
Are material certificates or test reports required?
What packaging protection is needed?
These answers help determine a more suitable material combination.
Yes. A basket does not always need to be made entirely from one material.
Possible combinations include:
Iron frame with coated wire baskets
Stainless steel wire with aluminum profiles
Aluminum frame with glass side panels
Metal structure with removable plastic accessories
Stainless steel decorative parts with another structural material
The final combination should consider appearance, weight, manufacturing feasibility, durability and target cost.
Iron is a practical choice for standard projects, while 201 stainless steel balances metallic appearance and cost. Buyers seeking better corrosion resistance can consider 304 stainless steel. Aluminum offers a lightweight, modern style, and glass elements can create a more premium visual effect.
The correct material depends on the target market, installation environment, product mechanism and expected price level.
